Introduction

In internal networks, few services are as common — and as dangerous when misconfigured — as SMB (Server Message Block). What looks like a simple file-sharing protocol often becomes the fastest path to sensitive data, credential leaks, and even full system compromise.

This write-up walks through SMB from a penetration tester's perspective: understanding, enumerating, and exploiting it step by step.

What is SMB?

SMB (Server Message Block) is a client-server protocol used for:

  • File sharing
  • Printer sharing
  • Network resource access
  • Inter-process communication

It is primarily used in Windows environments but also works cross-platform through Samba on Linux/Unix systems.

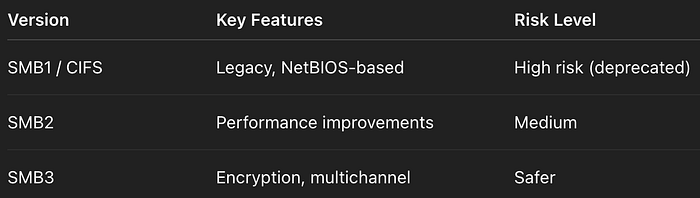

SMB Versions Overview

None

Important note:

  • SMB1 is deprecated and insecure
  • Modern systems should use SMB3

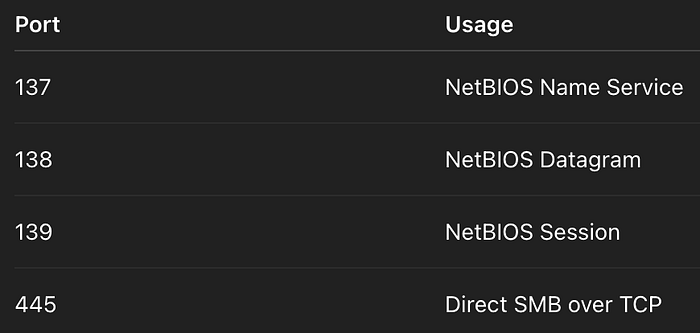

Ports & Protocol Behavior

None

Initial Enumeration

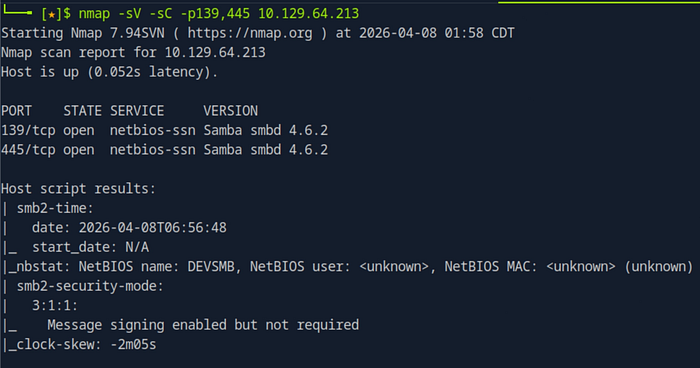

Nmap Scan

None
nmap -sV -sC -p139,445 <IP>

Purpose:

  • Detect SMB service
  • Identify version
  • Run default scripts

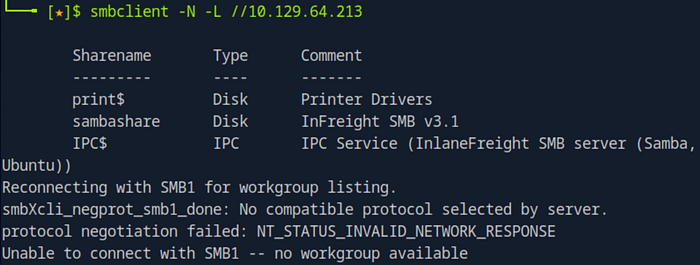

Null Session (Anonymous Access)

smbclient -N -L //<IP>

What it does:

  • Lists shares without authentication

If this works:

  • The system is already misconfigured
None

SMB Share Interaction

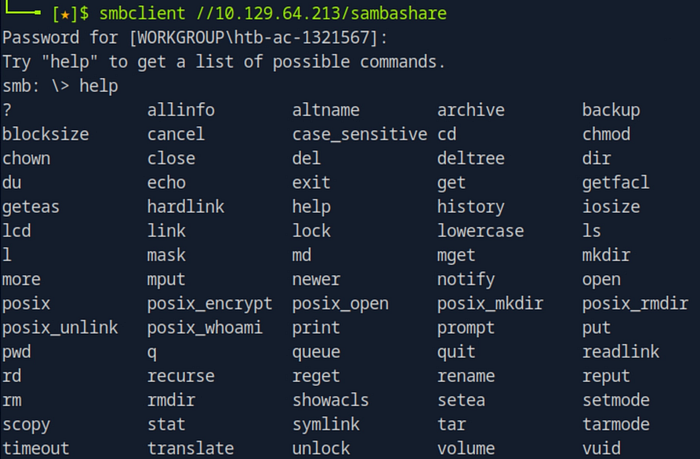

smbclient //<IP>/sambashare
None

Common commands inside:

ls

→ List files

get file.txt

→ Download file

put file.txt

→ Upload file

!ls

→ Run local command

RPC Enumeration (Most Powerful Phase)

rpcclient -U "" <IP>

This opens a shell for deep enumeration.

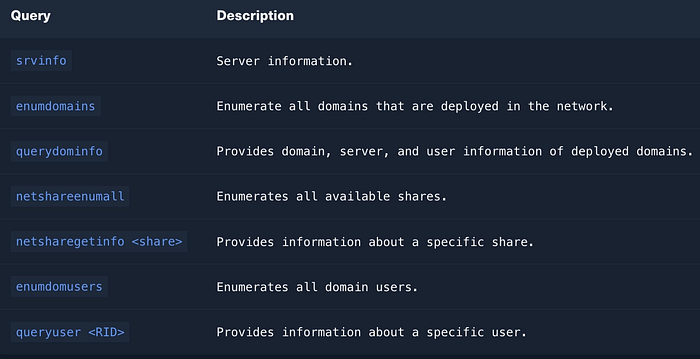

Core Enumeration Commands

None

https://www.samba.org/samba/docs/current/man-html/rpcclient.1.html

System Info

srvinfo

→ OS version, server type

Domain Enumeration

enumdomains

→ Lists domains/workgroups

None
querydominfo

→ Domain details:

  • User count
  • Server role (PDC is critical)
  • Domain name

User Enumeration

enumdomusers

→ List users

queryuser <RID>

→ Detailed user info:

  • Password last set
  • Login times
  • Profile paths

Share Enumeration

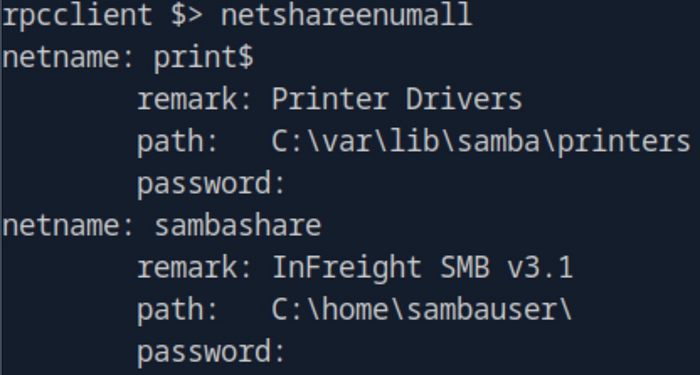

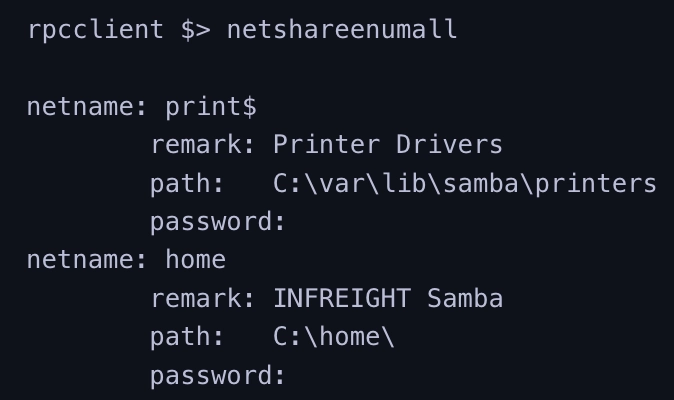

netshareenumall

→ Lists all shares (including hidden)

None
netsharegetinfo <share>

→ Deep analysis:

  • Path
  • Permissions
  • Active connections

Permission Analysis (Critical)

Example:

SID: S-1-1-0

→ Means: Everyone

Permissions: FULL ACCESS

Includes:

  • Read
  • Write
  • Delete
  • Change permissions
  • Take ownership

Why This is Dangerous

If a share has:

  • guest ok = yes
  • writable = yes
  • create mask = 0777

Then:

  • Anyone can upload files
  • Anyone can modify data
  • Anyone can delete content

This often leads to:

  • Data exfiltration
  • Malware upload
  • Webshell placement
  • Privilege escalation

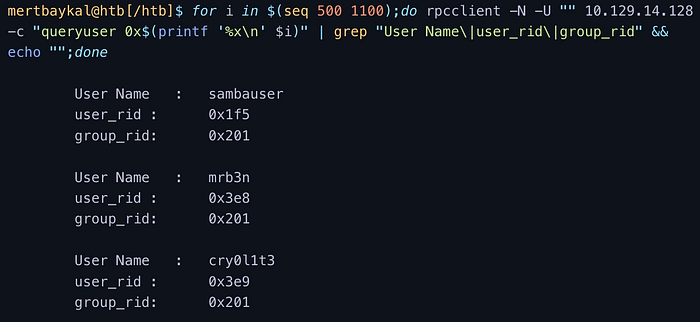

RID Brute Force

When users are not visible:

for i in $(seq 500 1100); do
rpcclient -N -U "" <IP> -c "queryuser 0x$(printf '%x\n' $i)"
done

Purpose:

  • Discover hidden users via RID
None

Alternative Tools

SMBMap

smbmap -H <IP>

→ Shows:

  • Shares
  • Permissions

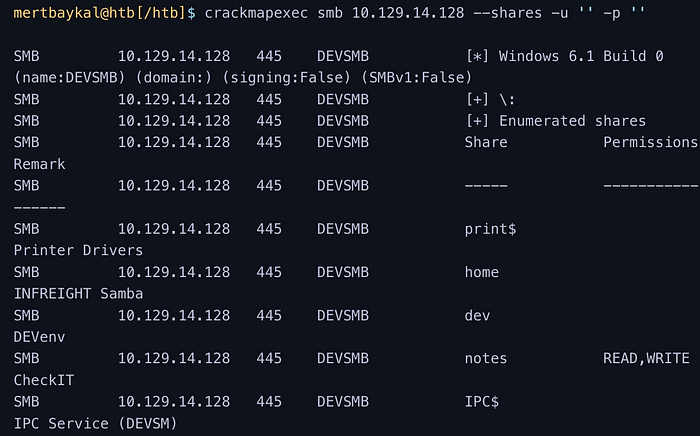

CrackMapExec

crackmapexec smb <IP> --shares -u '' -p ''

→ Fast enumeration + permission check

None

enum4linux-ng

./enum4linux-ng.py <IP> -A

→ Automated enumeration:

  • Users
  • Shares
  • Policies
  • OS info

Attack Path Example

  1. Anonymous login allowed
  2. Shares visible
  3. Writable share found
  4. Upload file
  5. Execute or retrieve sensitive data

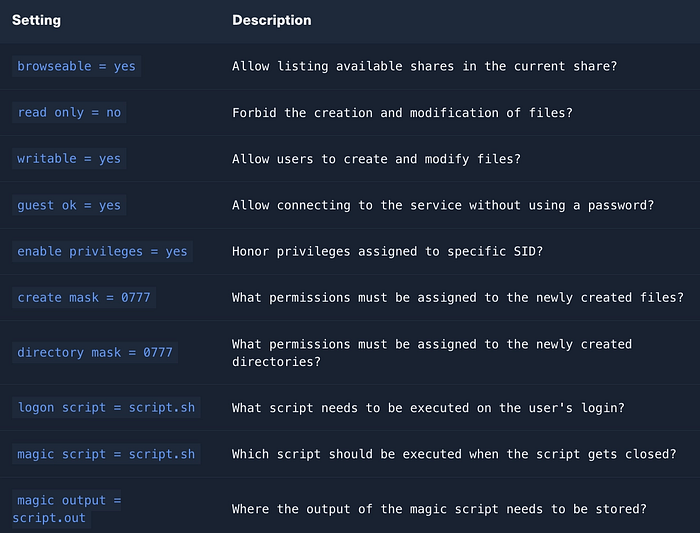

Most Dangerous Misconfigurations

None

These are the settings you should always look for:

guest ok = yes

→ No authentication required

read only = no

→ Write access enabled

writable = yes

→ Files can be modified

browseable = yes

→ Share visible to everyone

create mask = 0777

→ Full permissions on new files

directory mask = 0777

→ Full permissions on new directories

map to guest = bad user

→ Invalid users become guest

Secure Configuration (What Should Be Used)

cat /etc/samba/smb.conf | grep -v "#\|\;"

guest ok = no
read only = yes
writable = no
create mask = 0640
directory mask = 0750

Additional protections:

  • Disable SMB1
  • Enforce SMB signing
  • Restrict access via ACL
  • Use strong authentication
  • Monitor SMB logs
