Introduction

Modern applications rarely ask users for passwords directly anymore. Instead, they rely on protocols like OAuth 2.0 to delegate authentication securely.

For example, when you click "Login with Google", OAuth is working behind the scenes.

But here's the problem:

⚠️ If OAuth is implemented incorrectly, it can introduce serious vulnerabilities.

To understand this better, I built a hands-on OAuth security lab where I:

• Created a vulnerable OAuth flow
• Simulated a real attack (authorization code interception)
• Secured it using state and OAuth 2.0 PKCE

This article walks through everything — step by step.

🧠 What is OAuth (in simple terms)?

Think of OAuth like this:

You allow an app to access your data without giving it your password.

Example:

• You log in to a website using Google
• Google authenticates you
• The website gets limited access (via a token)

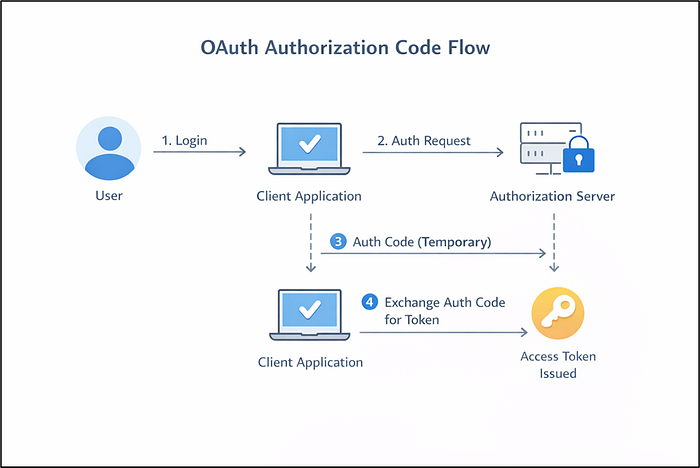

🔁 OAuth Authorization Code Flow

Here's a simplified flow:

🔥 The Problem: Authorization Code Interception

In the OAuth flow, the authorization code is very important.

If an attacker somehow steals this code, they might try to: Exchange it for an access token

And if successful:🚨 The attacker can act as the user.

🧪 Building the Lab

To understand this practically, I built a simple lab using Flask.

Components:

Client App (port 5001)
Authorization Server (port 5000)
Attacker Server (port 9000)

1️⃣ Vulnerable Authorization Server

My initial implementation looked like this:

@app.route("/authorize")
def authorize():
    client_id = request.args.get("client_id")
    redirect_uri = request.args.get("redirect_uri")

    code = str(uuid.uuid4())
    auth_codes[code] = client_id

    return redirect(f"{redirect_uri}?code={code}")

Problem:

❌ No state parameter
❌ No PKCE
❌ No validation

2️⃣ Attacker Server

I created a simple attacker endpoint:

@app.route("/steal")
def steal():
    code = request.args.get("code")
    print(f"[ATTACKER] Captured authorization code: {code}")

If the redirect URI is manipulated, the authorization code gets sent to the attacker.

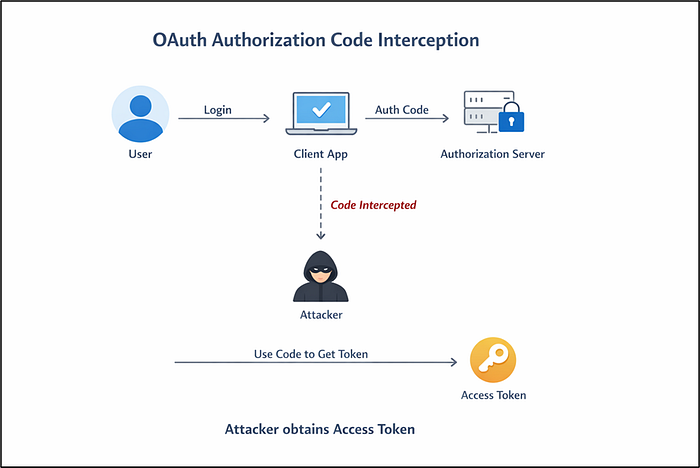

💥 Simulating the Attack

Attack flow:

🛡️ Fix 1: Adding the state Parameter

To prevent Login CSRF, I added:

state = secrets.token_urlsafe(16)
session["oauth_state"] = state

And sent it in the request:

&state={state}

Then validated it in /callback:

if state != session.get("oauth_state"):
    return "Invalid state parameter!"

What this fixes:

This prevents attackers from tricking users into logging into the wrong account

🔐 Fix 2: Implementing PKCE (The Real Protection)

Now comes the most important part — OAuth 2.0 PKCE

Step 1 — Generate code_verifier

code_verifier = secrets.token_urlsafe(32)
session["code_verifier"] = code_verifier

Step 2 — Generate code_challenge

code_challenge = base64.urlsafe_b64encode(
    hashlib.sha256(code_verifier.encode()).digest()
).rstrip(b"=").decode()

Step 3 — Send challenge to authorization server

&code_challenge={code_challenge}
&code_challenge_method=S256

Step 4 — Store challenge on server

auth_codes[code] = {
    "client_id": client_id,
    "code_challenge": code_challenge
}

Step 5 — Verify during token exchange

computed_challenge = base64.urlsafe_b64encode(
    hashlib.sha256(code_verifier.encode()).digest()
).rstrip(b"=").decode()

if computed_challenge != stored_challenge:
    return {"error": "invalid_code_verifier"}

🚫 What happens to the attacker now?

The attacker would still be able to steal the authorization code but when tries to exchange it, it fails as there is no code_verifier sent and the attack is failed

🧠 What I Learned

Building this lab helped me understand:

• OAuth is easy to misuse
• Security depends on implementation details
• PKCE is critical for modern apps
• Attacks become obvious when you simulate them

🔗 Project Link

👉 GitHub: https://github.com/AshSecures/02-oauth2-lab

🏁 Conclusion

OAuth is powerful — but also dangerous if misunderstood.

By building this lab, I moved from:

Just reading about OAuth → Breaking OAuth → Fixing OAuth

And that's where real learning happens.
