Disclaimer

This project was performed in a controlled lab environment using Metasploitable 2 (intentionally vulnerable machine). All activities were conducted for educational purposes only.

Report repository(Git Hub): Link

None

Why I Built This

Most beginners run scans manually.

Run Nmap → Check results → Stop.

But in real-world cybersecurity, that's not enough.

Networks are dynamic:

  • New devices appear
  • Ports open and close
  • Services change

So I wanted to build something smarter:

A system that scans automatically, updates itself, and shows results live — without any manual work.

Lab Setup

  • Kali Linux → Attacker & scanner
  • Metasploitable 2 → Target
  • VirtualBox → Isolated environment
  • Apache2 → Web server

Everything runs inside a safe lab.

The Idea (Architecture)

This project works like a pipeline:

  1. Discover network
  2. Scan ports
  3. Detect services
  4. Convert output → HTML
  5. Host on web server
  6. Automate using cron

Then repeat every 10 minutes automatically

Step 1 — Network Discovery

I started by identifying live devices:

nmap -sn 192.168.56.0/24

Found:

  • Target machine (Metasploitable 2)
  • Network range

This step is crucial — you can't scan what you don't know exists.

Step 2 — Port Scanning (Deep + Fast)

🔹 Nmap (Detailed Scan)

nmap -sV 192.168.56.101
  • Detects services
  • Identifies versions
  • Finds vulnerabilities

Masscan (Fast Scan)

masscan 192.168.56.101 -p1-10000 --rate=10000
  • Scans 10,000 ports in seconds
  • Confirms open ports quickly

Found 19+ open ports including:

  • FTP (21)
  • SSH (22)
  • HTTP (80)
  • SMB (445)
  • Backdoor (1524)

Step 3 — Building the Automation Script

This is the core of the project

I created a bash script:

#!/bin/bash
TIMESTAMP=$(date "+%Y-%m-%d %H:%M:%S")
echo "<html><body>" > /var/www/html/scan_results.html
echo "<h1>Network Scan Results</h1>" >> /var/www/html/scan_results.html
echo "<p>Last Updated: $TIMESTAMP</p><pre>" >> /var/www/html/scan_results.html
nmap -sV 192.168.56.101 >> /var/www/html/scan_results.html
echo "</pre></body></html>" >> /var/www/html/scan_results.html

What This Script Does

  • Gets current time
  • Creates HTML page
  • Runs Nmap scan
  • Embeds results inside webpage
  • Updates file every time it runs

Important concepts:

  • > → overwrite file
  • >> → append data

Step 4 — Hosting Results on Web Server

I used Apache2:

sudo systemctl start apache2

Saved results in:

/var/www/html/scan_results.html

Now I can open:

http://192.168.56.103/scan_results.html

And see:

  • Live scan results
  • Open ports
  • Services
  • Timestamp

Step 5 — Making It Fully Automatic (CRON JOB)

This is where everything becomes powerful.

I added:

*/10 * * * * /home/pavan/scan_script.sh

What This Means

  • Runs every 10 minutes
  • Works 24/7
  • No manual execution needed

Cron acts like a scheduler (alarm system for Linux)

Step 6 — Full Automation Flow

Now the system works like this:

  1. Cron triggers script
  2. Script runs Nmap
  3. Output converted to HTML
  4. Webpage updates automatically
  5. User sees latest scan

Repeat every 10 minutes

Final Output (What I Built)

I successfully created:

✔️ Automated port scanner ✔️ Real-time updating dashboard ✔️ Continuous monitoring system ✔️ Zero manual effort

None

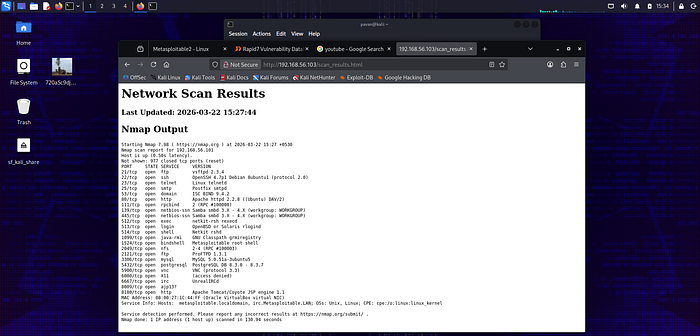

Fig: Web Dashboard
None

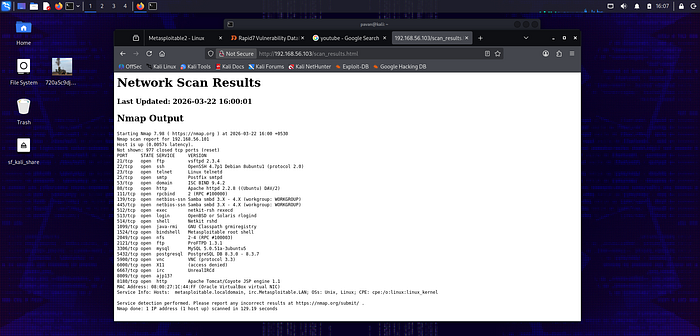

Fig: Afterautomation
None
Fig: Afterautomation

Security Insights Discovered

From continuous scanning:

  • Backdoor on port 1524 → root access
  • FTP vulnerable → unauthorized access
  • Telnet → plaintext credentials
  • SMB → exploitable services

This shows how dangerous unmonitored systems are.

Real-World Use Case

This system can be used for:

  • SOC monitoring
  • Network auditing
  • Detecting unauthorized devices
  • Continuous vulnerability tracking

This is exactly how real companies monitor networks.

What I Learned

  • Automation is more powerful than manual work
  • Bash scripting can build real tools
  • Nmap + Masscan = powerful combo
  • Cybersecurity = monitoring, not just hacking

Final Thought

Anyone can run a scan… But building a system that runs itself? That's real skill.
