Building a Cloud-Native File Upload and Analytics Platform Using AWS (Step-by-Step Guide)

I recently built a cloud-native project where users can upload videos or files through a web page, have them stored securely in Amazon S3…

Harshal Jethwa

9 min read

I recently built a cloud-native project where users can upload videos or files through a web page, have them stored securely in Amazon S3, and track how many times each file is downloaded — all without managing any servers.

The goal was simple: Create a fully automated, serverless system that could handle uploads, store metadata, and show real-time analytics — using AWS as the backbone.

In this post, I'll walk you through exactly how I built it: each service, every configuration, and the little lessons learned along the way.

What We're Building

Here's what the app does:

  • Users select and upload a file from their browser.
  • The file is sent directly to Amazon S3 via a presigned URL (no backend bottlenecks).
  • A PHP backend running on AWS Elastic Beanstalk saves metadata (filename, S3 path, and view count) in DynamoDB.
  • Whenever a user clicks "Download," the app increments the view count.
  • Everything scales automatically.

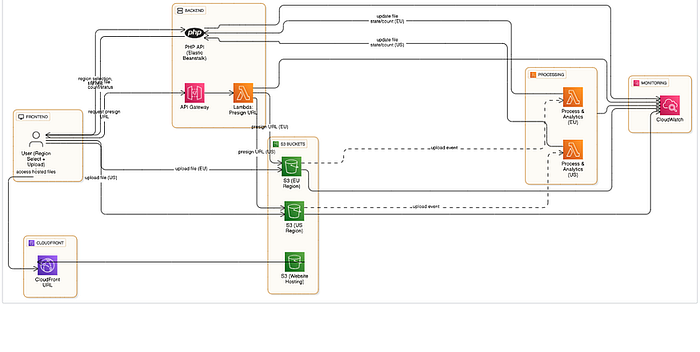

Architecture Overview

Each part has a specific job:

Press enter or click to view image in full size

None
  • Frontend: clean UI for uploads and analytics
  • API Gateway + Lambda: safely create temporary upload links
  • S3: durable storage for files
  • Elastic Beanstalk: runs PHP backend for metadata
  • DynamoDB: fast, serverless database for file info and counts

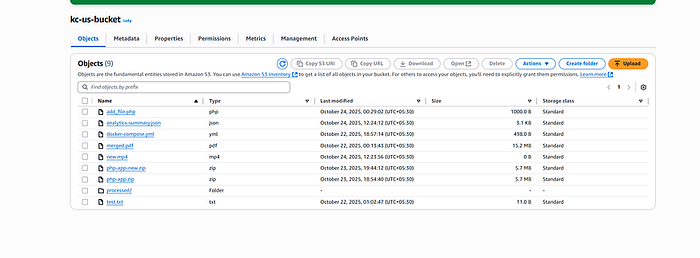

Step 1 — Create S3 Buckets

We'll use two buckets (for example):

  • kc-us-bucket (US region)
  • harshal-raw-bucket-demo (secondary region)

CORS Configuration

[
  {
    "AllowedHeaders": ["*"],
    "AllowedMethods": ["GET", "PUT", "POST"],
    "AllowedOrigins": ["*"]
  }
]

This lets the browser talk directly to S3 through presigned URLs.

Step 2 — DynamoDB Setup

Create a table called FileAnalytics with:

  • Partition key: FileName (String)

Each record will look like:

{
  "FileName": "demo.pdf",
  "Views": 5,
  "S3Path": "https://kc-us-bucket.s3.amazonaws.com/demo.pdf"
}

Simple, lightweight, and scales to millions of entries.

Step 3 — IAM Role

Elastic Beanstalk's EC2 instance needs permission to talk to DynamoDB and S3.

EC2 Instance Role

Attach:

  • AmazonS3FullAccess
  • AmazonDynamoDBFullAccess

Elastic Beanstalk Service Role

Attach:

  • AWSElasticBeanstalkService
  • AWSElasticBeanstalkManagedUpdatesCustomerRolePolicy

Name them clearly (e.g., aws-elasticbeanstalk-ec2-role).

Wait a few minutes after creating IAM roles — propagation takes time.

Step 4 — Deploy PHP Backend on Elastic Beanstalk

Install the EB CLI:

pip install awsebcli
eb --version

Initialize:

eb init -p "PHP 8.2" file-core-app --region us-east-1

Create a single-instance environment:

eb create file-core-env --single

You'll get a domain like http://file-core-env.eba-xxxx.us-east-1.elasticbeanstalk.com

Step 5 — Backend Files

add_file.php

Registers new files.

<?php
header("Content-Type: application/json");
header("Access-Control-Allow-Origin: *");
header("Access-Control-Allow-Headers: Content-Type");
// Include AWS SDK
require 'vendor/autoload.php';
use Aws\DynamoDb\DynamoDbClient;
$data = json_decode(file_get_contents("php://input"), true);
if(!$data || empty($data['FileName'])) {
    echo json_encode(["status"=>"error","message"=>"FileName is required"]);
    exit;
}
// Connect to DynamoDB
$dynamodb = new DynamoDbClient([
    'region' => 'us-east-1',
    'version' => 'latest'
]);
$table = 'FileAnalytics';
try{
    $dynamodb->putItem([
        'TableName' => $table,
        'Item' => [
            'FileName' => ['S' => $data['FileName']],
            'Views'    => ['N' => (string)($data['Views'] ?? 0)],
            'S3Path'   => ['S' => $data['S3Path'] ?? '']
        ]
    ]);
    echo json_encode(["status"=>"success","message"=>"Item added successfully"]);
} catch(Exception $e){
    echo json_encode(["status"=>"error","message"=>$e->getMessage()]);
}
?>

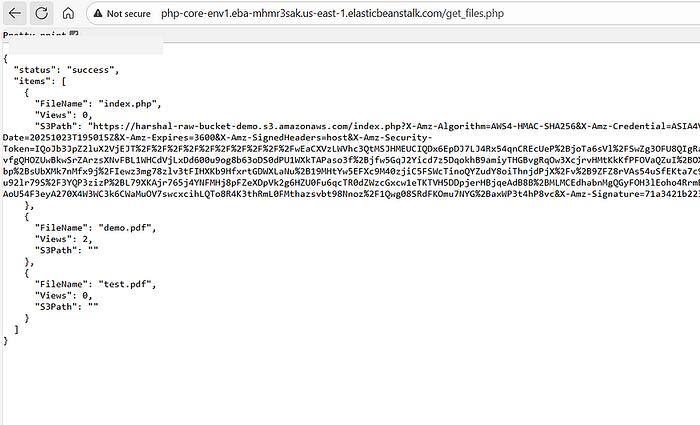

get_files.php

Lists all files.

<?php
header("Content-Type: application/json");
header("Access-Control-Allow-Origin: *");
require 'vendor/autoload.php';
use Aws\DynamoDb\DynamoDbClient;
$dynamodb = new DynamoDbClient([
    'region' => 'us-east-1',
    'version' => 'latest'
]);
$table = 'FileAnalytics';
try {
    $result = $dynamodb->scan([
        'TableName' => $table
    ]);
    $items = [];
    foreach($result['Items'] as $item){
        $items[] = [
            'FileName' => $item['FileName']['S'] ?? '',
            'Views' => isset($item['Views']['N']) ? (int)$item['Views']['N'] : 0,
            'S3Path' => $item['S3Path']['S'] ?? ''
        ];
    }
    echo json_encode(["status"=>"success","items"=>$items]);
} catch(Exception $e){
    echo json_encode(["status"=>"error","message"=>$e->getMessage()]);
}
?>

update_views.php

Increments view count.

<?php
require 'vendor/autoload.php';
use Aws\DynamoDb\DynamoDbClient;
use Aws\DynamoDb\Exception\DynamoDbException;
header("Content-Type: application/json");
header("Access-Control-Allow-Origin: *");
header("Access-Control-Allow-Methods: GET, POST, OPTIONS");
header("Access-Control-Allow-Headers: Content-Type");
if ($_SERVER['REQUEST_METHOD'] === 'OPTIONS') {
    http_response_code(200);
    exit;
}
$data = json_decode(file_get_contents('php://input'), true);
if (!isset($data['FileName'])) {
    echo json_encode(["status"=>"error","message"=>"Missing FileName"]);
    exit;
}
$client = new DynamoDbClient([
    'region' => 'us-east-1',
    'version' => 'latest'
]);
try {
    $client->updateItem([
        'TableName' => 'FileAnalytics',
        'Key' => [
            'FileName' => ['S' => $data['FileName']]
        ],
        'UpdateExpression' => 'SET #v = #v + :inc',
        'ExpressionAttributeNames' => ['#v' => 'Views'],
        'ExpressionAttributeValues' => [':inc' => ['N' => '1']]
    ]);
    echo json_encode(["status"=>"success","message"=>"View count updated successfully"]);
} catch (DynamoDbException $e) {
    echo json_encode(["status"=>"error","message"=>$e->getMessage()]);
}
?>a

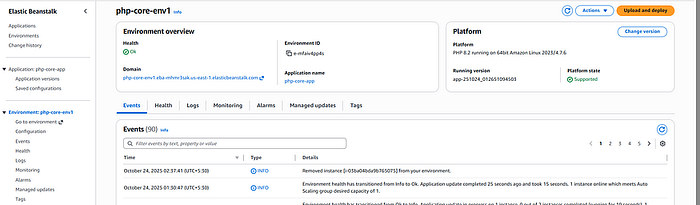

Deploy with:

eb deploy

Press enter or click to view image in full size

None

Press enter or click to view image in full size

None

Step 6 — Lambda Function for Presigned URLs

import boto3, json
s3=boto3.client('s3')
def lambda_handler(event, context):
    b=json.loads(event['body'])
    fn=b['filename']
    reg=b.get('region','us')
    bucket="kc-us-bucket" if reg=="us" else "harshal-raw-bucket-demo"
    put=s3.generate_presigned_url('put_object',Params={'Bucket':bucket,'Key':fn},ExpiresIn=3600)
    get=f"https://{bucket}.s3.amazonaws.com/{fn}"
    return {"statusCode":200,"headers":{"Access-Control-Allow-Origin":"*"},"body":json.dumps({"upload_url":put,"download_url":get})}

Analytics Lambda — User Actions Tracker

To extend observability, I added an Analytics Lambda Function that records every upload or view event. This is triggered asynchronously via the frontend after uploads or downloads.

Features:

  • Receives user actions (upload/view)
  • Logs them to a DynamoDB table (AnalyticsTable or of your choice)
  • Enables tracking of system usage over time

Lambda Code (Analytics)

import json, boto3, os
s3 = boto3.client('s3')
def lambda_handler(event, context):
    print("Received event:", json.dumps(event, indent=2))
    for record in event['Records']:
        bucket = record['s3']['bucket']['name']
        key = record['s3']['object']['key']

        # Skip already processed files
        if key.startswith("processed/"):
            print(f"Skipping already processed file: {key}")
            continue

        # Define new processed key
        processed_key = f"processed/{os.path.basename(key)}"

        # Copy file to processed/ folder
        s3.copy_object(
            Bucket=bucket,
            CopySource={'Bucket': bucket, 'Key': key},
            Key=processed_key
        )
        print(f"Processed {key} → {processed_key} in {bucket}")

        # Optionally update analytics (e.g., DynamoDB or CloudWatch)
        print(f" Analytics updated for {os.path.basename(key)}")
    return {"status": "done"}

Link it with API Gateway → POST /new/presign, enable CORS, and deploy.

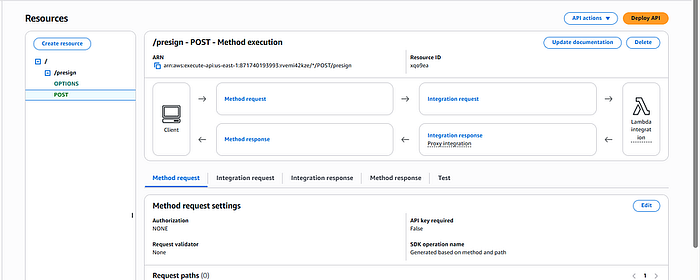

Step 7 — Create API Gateway

  1. Go to API Gateway → Create API → REST API
  2. Create a Resource named /new
  3. Add a POST Method
  • Integration Type: Lambda Function
  • Choose your Lambda (the one you just created)
  1. Enable CORS
  2. Deploy API:

Press enter or click to view image in full size

None

Test with:

curl -X POST https://your-api-id.execute-api.us-east-1.amazonaws.com/new/presign \
-H "Content-Type: application/json" \
-d '{"filename":"test.pdf","region":"us"}'

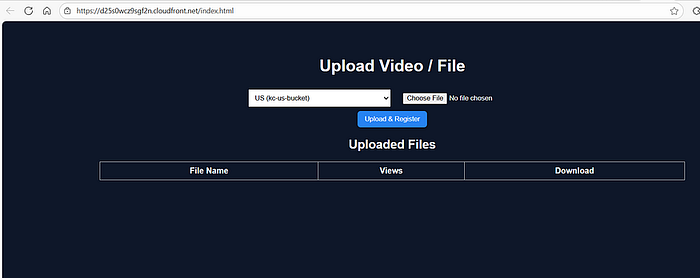

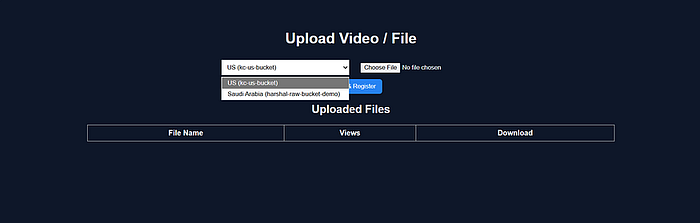

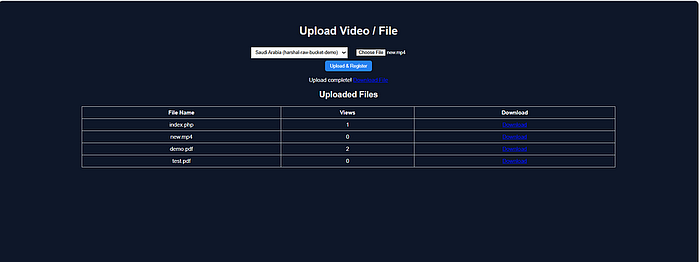

Step 8 — Frontend (index.html)

<!-- <!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>S3 Presigned Upload</title>
</head>
<body>
    <h2>Upload File to S3</h2>

<label for="region">Choose region/bucket:</label>
    <select id="region">
        <option value="us">US (kc-us-bucket)</option>
        <option value="saudi">Saudi (harshal-raw-bucket-demo)</option>
    </select>
    <br><br>
    <input type="file" id="fileInput">
    <button onclick="uploadFile()">Upload</button>
    <h3>Results</h3>
    <div id="results"></div>
    <script>
        async function uploadFile() {
            const fileInput = document.getElementById("fileInput");
            const file = fileInput.files[0];
            const region = document.getElementById("region").value;
            if (!file) {
                alert("Please select a file!");
                return;
            }
            // Call Lambda API to get presigned URLs
            const response = await fetch("https://rvemi42kze.execute-api.us-east-1.amazonaws.com/new/presign", {
                method: "POST",
                headers: {
                    "Content-Type": "application/json"
                },
                body: JSON.stringify({
                    filename: file.name,
                    region: region
                })
            });
            if (!response.ok) {
                alert("Failed to get presigned URL");
                return;
            }
            const data = await response.json();
            const uploadUrl = data.upload_url;
            const downloadUrl = data.download_url;
            // Upload the file to S3 using the presigned URL
            const uploadResponse = await fetch(uploadUrl, {
                method: "PUT",
                body: file
            });
            if (uploadResponse.ok) {
                document.getElementById("results").innerHTML = `
                    <p>Upload successful!</p>
                    <p>Download URL: <a href="${downloadUrl}" target="_blank">${downloadUrl}</a></p>
                `;
            } else {
                document.getElementById("results").innerText = "Upload failed!";
            }
        }
    </script>
</body>
</html> -->
<!-- <!doctype html>
<html>
<head>
  <meta charset="utf-8"/>
  <title>Upload Video / File for Presigning</title>
  <style>body{font-family:sans-serif;background:#0f172a;color:#fff;padding:40px;text-align:center}input,select{padding:8px;margin:6px}button{padding:8px 14px;background:#3b82f6;border:none;border-radius:6px;color:white;cursor:pointer}</style>
</head>
<body>
  <h1>Upload Video / File for Presigning</h1>
  <select id="region">
    <option value="us">US (kc-us-bucket)</option>
    <option value="saudi">Saudi Arabia (harshal-raw-bucket-demo)</option>
  </select>
  <input type="file" id="file"/>
  <br/>
  <button id="uploadBtn">Upload & Process</button>
  <p id="status"></p>
<script>
const API = "https://rvemi42kze.execute-api.us-east-1.amazonaws.com/new/presign"; // replace with your API Gateway endpoint (POST)
// const ANALYTICS_API = "https://<YOUR_API_HOST>/new/analytics"; // optional
document.getElementById("uploadBtn").onclick = async function() {
  const f = document.getElementById("file").files[0];
  const region = document.getElementById("region").value;
  const status = document.getElementById("status");
  if (!f) { alert("choose file"); return;}
  status.innerText = "Requesting presigned URL...";
  try {
    const res = await fetch(API, {
      method: "POST",
      headers: {"Content-Type":"application/json"},
      body: JSON.stringify({filename: f.name, region})
    });
    if (!res.ok) throw new Error("presign failed");
    const data = await res.json();
    const put = data.upload_url || data.uploadUrl || data.put_url || data.uploadUrl;
    const get = data.download_url || data.downloadUrl || data.get_url || data.getUrl;
    if (!put) throw new Error("no upload URL returned");
    status.innerText = "Uploading file to S3...";
    const r2 = await fetch(put, {method: "PUT", body: f});
    if (!r2.ok) throw new Error("upload failed: "+r2.status);
    status.innerText = "Triggering analytics/process...";
    // optional analytics
    try {
      await fetch(ANALYTICS_API, {method:"POST", headers:{"Content-Type":"application/json"}, body: JSON.stringify({userId:"demo", action:"upload", region})});
    } catch(err){ console.warn("analytics failed", err);}
    status.innerHTML = `Upload complete! Download: <a href="${get}" target="_blank">open file</a>`;
  } catch (e) {
    status.innerText = "Error: "+(e.message||e);
    console.error(e);
  }
};
</script>
</body>
</html> -->
<!-- <!doctype html>
<html>
<head>
  <meta charset="utf-8"/>
  <title>Upload Video / File</title>
  <style>
    body{font-family:sans-serif;background:#0f172a;color:#fff;padding:40px;text-align:center}
    input,select{padding:8px;margin:6px}
    button{padding:8px 14px;background:#3b82f6;border:none;border-radius:6px;color:white;cursor:pointer}
    table{margin:20px auto; border-collapse: collapse; width: 80%;}
    th,td{padding:8px;border:1px solid #ccc;text-align:center;color:#fff;}
  </style>
</head>
<body>
  <h1>Upload Video / File</h1>
  <select id="region">
    <option value="us">US (kc-us-bucket)</option>
    <option value="saudi">Saudi Arabia (harshal-raw-bucket-demo)</option>
  </select>
  <input type="file" id="file"/>
  <br/>
  <button id="uploadBtn">Upload & Register</button>
  <p id="status"></p>
  <h2>Uploaded Files</h2>
  <table id="fileTable">
    <thead><tr><th>File Name</th><th>Views</th><th>Download</th></tr></thead>
    <tbody></tbody>
  </table>
<script>
const PRESIGN_API = "https://rvemi42kze.execute-api.us-east-1.amazonaws.com/new/presign";
const EB_API = "http://php-core-env1.eba-mhmr3sak.us-east-1.elasticbeanstalk.com";
async function refreshFileList() {
  const tbody = document.querySelector("#fileTable tbody");
  tbody.innerHTML = '';
  try {
    const res = await fetch(`${EB_API}/get_files.php`);
    const data = await res.json();
    if(data.status === "success" && Array.isArray(data.items)){
      data.items.forEach(item=>{
        const tr = document.createElement('tr');
        const name = item.FileName?.S || item.id || 'N/A';
        const views = item.Views?.N || 0;
        const downloadUrl = item.S3Path?.S || '#';
        tr.innerHTML = `<td>${name}</td><td>${views}</td><td><a href="${downloadUrl}" target="_blank" onclick="incrementViews('${name}')">Download</a></td>`;
        tbody.appendChild(tr);
      });
    }
  } catch(err){ console.warn(err); }
}
async function incrementViews(fileName){
  try{
    await fetch(`${EB_API}/update_views.php`, {
      method:"POST",
      headers:{"Content-Type":"application/json"},
      body: JSON.stringify({FileName:fileName})
    });
    refreshFileList();
  } catch(e){ console.error(e); }
}
document.getElementById("uploadBtn").onclick = async function() {
  const f = document.getElementById("file").files[0];
  const region = document.getElementById("region").value;
  const status = document.getElementById("status");
  if(!f){ alert("Choose a file"); return; }
  status.innerText = "Requesting presigned URL...";
  try{
    const res = await fetch(PRESIGN_API,{
      method:"POST",
      headers:{"Content-Type":"application/json"},
      body: JSON.stringify({filename: f.name, region})
    });
    const data = await res.json();
    const putUrl = data.upload_url || data.uploadUrl;
    const getUrl = data.download_url || data.downloadUrl;
    status.innerText = "Uploading to S3...";
    const r2 = await fetch(putUrl, {method:"PUT", body:f});
    if(!r2.ok) throw new Error("Upload failed");
    status.innerText = "Registering file in DynamoDB...";
    await fetch(`${EB_API}/add_file.php`,{
      method:"POST",
      headers:{"Content-Type":"application/json"},
      body: JSON.stringify({FileName:f.name, Views:0, S3Path:getUrl})
    });
    status.innerHTML = `Upload complete! <a href="${getUrl}" target="_blank">Download File</a>`;
    refreshFileList();
  } catch(e){
    status.innerText = "Error: "+(e.message||e);
    console.error(e);
  }
};
refreshFileList();
</script>
</body>
</html> -->
<!doctype html>
<html>
<head>
  <meta charset="utf-8"/>
  <title>Upload Video / File</title>
  <style>
    body{font-family:sans-serif;background:#0f172a;color:#fff;padding:40px;text-align:center}
    input,select{padding:8px;margin:6px}
    button{padding:8px 14px;background:#3b82f6;border:none;border-radius:6px;color:white;cursor:pointer}
    table{margin:20px auto; border-collapse: collapse; width: 80%;}
    th,td{padding:8px;border:1px solid #ccc;text-align:center;color:#fff;}
  </style>
</head>
<body>
  <h1>Upload Video / File</h1>
  <select id="region">
    <option value="us">US (kc-us-bucket)</option>
    <option value="saudi">Saudi Arabia (harshal-raw-bucket-demo)</option>
  </select>
  <input type="file" id="file"/>
  <br/>
  <button id="uploadBtn">Upload & Register</button>
  <p id="status"></p>
  <h2>Uploaded Files</h2>
  <table id="fileTable">
    <thead><tr><th>File Name</th><th>Views</th><th>Download</th></tr></thead>
    <tbody></tbody>
  </table>
<script>
const PRESIGN_API = "https://rvexxxxxx.execute-api.us-east-1.amazonaws.com/new/presign";
const EB_API = "http://php-xxx-xxx.eba-xxxxxx.us-east-1.elasticbeanstalk.com";
// Refresh files table
async function refreshFileList() {
  const tbody = document.querySelector("#fileTable tbody");
  tbody.innerHTML = '';
  try {
    const res = await fetch(`${EB_API}/get_files.php`);
    const data = await res.json();
    if(data.status === "success" && Array.isArray(data.items)){
      data.items.forEach(item=>{
        const tr = document.createElement('tr');
        const name = item.FileName || 'N/A';
        const views = item.Views || 0;
        const downloadUrl = item.S3Path || '#';
        tr.innerHTML = `<td>${name}</td><td>${views}</td><td><a href="${downloadUrl}" target="_blank" onclick="incrementViews('${name}')">Download</a></td>`;
        tbody.appendChild(tr);
      });
    }
  } catch(err){ console.warn(err); }
}
// Increment views when file is downloaded
async function incrementViews(fileName){
  try{
    await fetch(`${EB_API}/update_views.php`, {
      method:"POST",
      headers:{"Content-Type":"application/json"},
      body: JSON.stringify({FileName:fileName})
    });
    refreshFileList();
  } catch(e){ console.error(e); }
}
// Upload & register file
document.getElementById("uploadBtn").onclick = async function() {
  const f = document.getElementById("file").files[0];
  const region = document.getElementById("region").value;
  const status = document.getElementById("status");
  if(!f){ alert("Choose a file"); return; }
  status.innerText = "Requesting presigned URL...";
  try{
    const res = await fetch(PRESIGN_API,{
      method:"POST",
      headers:{"Content-Type":"application/json"},
      body: JSON.stringify({filename: f.name, region})
    });
    const data = await res.json();
    const putUrl = data.upload_url || data.uploadUrl;
    const getUrl = data.download_url || data.downloadUrl;
    status.innerText = "Uploading to S3...";
    const r2 = await fetch(putUrl, {method:"PUT", body:f});
    if(!r2.ok) throw new Error("Upload failed");
    status.innerText = "Registering file in DynamoDB...";
    await fetch(`${EB_API}/add_file.php`,{
      method:"POST",
      headers:{"Content-Type":"application/json"},
      body: JSON.stringify({FileName:f.name, Views:0, S3Path:getUrl})
    });
    status.innerHTML = `Upload complete! <a href="${getUrl}" target="_blank">Download File</a>`;
    refreshFileList();
  } catch(e){
    status.innerText = "Error: "+(e.message||e);
    console.error(e);
  }
};
refreshFileList();
</script>
</body>
</html>

Press enter or click to view image in full size

None

Step 9 — CloudFront Hosting

You can host the frontend via:

  1. Uploading index.html to S3
  2. Enabling static website hosting
  3. Creating a CloudFront distribution for global CD
  4. Adding HTTPS using ACM (if available in your region)

Press enter or click to view image in full size

None

Step 10 — Test It

  • Open the web page.
  • Choose a file → click Upload.
  • File appears in S3 and in DynamoDB.
  • Click Download → view count increments automatically.

Press enter or click to view image in full size

None

Press enter or click to view image in full size

None

Lessons Learned

  • IAM roles are crucial — even one missing policy can stop deployment.
  • Presigned URLs make uploads faster and safer.
  • Elastic Beanstalk's managed PHP platform is a great middle ground between full server management and pure Lambda.
  • DynamoDB is ideal for small, fast, serverless metadata storage.
  • CORS and HTTPS need to be configured everywhere — S3, API Gateway, and backend.

Wrapping Up

This project demonstrates how a developer or DevOps engineer can integrate multiple AWS services — S3, Lambda, API Gateway, DynamoDB, and Elastic Beanstalk — to create a real, production-style solution without managing servers.

The result is a lightweight, fully scalable, pay-as-you-go application that handles file uploads, tracks analytics, and can grow globally with minimal effort.

Follow me :

Linkedin: https://www.linkedin.com/in/harshaljethwa/

GitHub: https://github.com/HARSHALJETHWA19/

Twitter: https://twitter.com/harshaljethwaa

Thank You!!!
