Read the blog post(opens in new tab) for a more in-depth explanation. Room created by BeeSec(opens in new tab)

Shodan.io is a search engine for the Internet of Things. Ever wondered how you can find publicly accessible CCTV cameras? What about finding out how many Pi-Holes are publicly accessible? Or whether your office coffee machine is on the internet?

Shodan.io is the answer! Shodan scans the whole internet and indexes the services run on each IP address.

Note: if you are following along, you'll need a premium Shodan account.

Finding services

Let's say we are performing a pentest on a company, and we want to find out what services one of their servers run.

We need to grab their IP address. We can do this using ping.

We can ping tryhackme.com and the ping response will tell us their IP address.

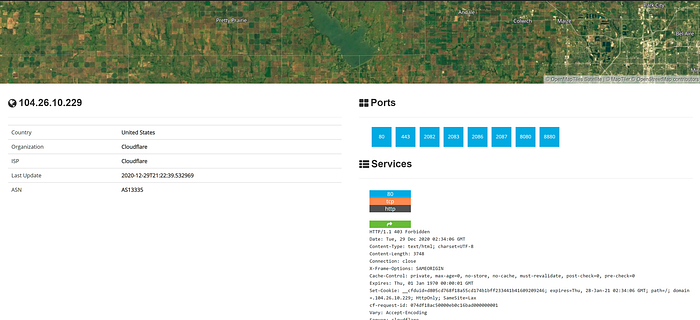

Then once we do this, we put the IP address into Shodan to get:

None

We can see that TryHackMe runs on Cloudflare in the United States and they have many ports open.

Cloudflare acts as a proxy between TryHackMe and their real servers. If we were pentesting a large company, this isn't helpful. We need some way to get their IP addresses.

We can do this using Autonomous System Numbers.

Autonomous System Numbers

An autonomous system number (ASN) is a global identifier of a range of IP addresses. If you are an enormous company like Google you will likely have your own ASN for all of the IP addresses you own.

We can put the IP address into an ASN lookup tool such as https://asnlookup.com/(opens in new tab),

Which tells us they have the ASN AS14061.

Tryhackme isn't a mega large corporation, so they don't own their own ASN. When we google AS14061 we can see it is a DigitalOcean ASN number.

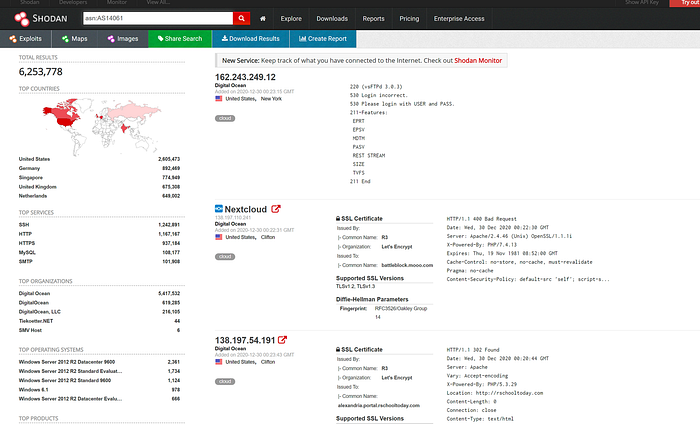

On Shodan.io,we can search using the ASN filter. The filter is ASN:[number] where number is the number we got from earlier, which is AS14061.

Doing this, we can see a whole range 6.2 million websites, in fact) that are on this one single ASN!

https://www.shodan.io/search?query=asn%3AAS14061(opens in new tab)(opens in new tab)

None

Knowing the ASN is helpful, because we can search Shodan for things such as coffee makers or vulnerable computers within our ASN, which we know (if we are a large company) is on our network.

Getting started

Time to dig in! If you get stuck, look at the previous task for some help! :)

Banners

To get the most out of Shodan, it's important to understand the search query syntax.

Devices run services, and Shodan stores information about them. The information is stored in a banner. It's the most fundamental part of Shodan.

An example banner looks like:

{

"data": "Moxa Nport Device",

"Status": "Authentication disabled",

"Name": "NP5232I_4728",

"MAC": "00:90:e8:47:10:2d",

"ip_str": "46.252.132.235",

"port": 4800,

"org": "Starhub Mobile",

"location":
{
				"country_code": "SG"
		}
 }

We're looking at the output of a single port, which includes information about the IP and authentication details.

You don't really see this outside of the API, so we won't delve into it.

Answer the questions below

  • What command is used to find Eternal Blue exploits on Shodan using the vuln filter?

vuln:ms17–010

  • What is the top operating system for MYSQL servers in Google's ASN?

5.6.40–84.0-log

  • What is the 2nd most popular country for MYSQL servers in Google's ASN?

Netherlands

  • Under Google's ASN, which is more popular for nginx, Hypertext Transfer Protocol or Hypertext Transfer Protocol with SSL?

Hypertext Transfer Protocol

  • Under Google's ASN, what is the most popular city?

Kansas City

  • Under Google's ASN in Los Angeles, what is the top operating system according to Shodan?

Debian

  • Using the top Webcam search from the explore page, does Google's ASN have any webcams? Yay / nay.

Nay

  • What URL takes you to Shodan Monitor?

https://monitor.shodan.io/dashboard

  • What dork lets us find PCs infected by Ransomware?

has_screenshot:true encrypted attention

Shodan.io has an API! It requires an account, so I won't talk about it here.

If you want to explore the Shodan API, I've written a blog post about finding Pi-Holes with it here:

https://github.com/beesecurity/How-I-Hacked-Your-Pi-Hole/blob/master/README.md(opens in new tab)(opens in new tab)

The API lets us programmatically search Shodan and receive a list of IP addresses in return. If we are a company, we can write a script to check over our IP addresses to see if any of them are vulnerable.

PS: You can automatically filter on Shodan by clicking the things in the left hand side bar!

Answer the questions below

Read the blog post above!
