The Context: Security vs. Infrastructure Constraints

In the world of enterprise architecture, we rarely start with a blank canvas. More often than not, we're faced with the 'Innovation vs. Compliance' Paradox: the business requires modern, high-grade security, but the existing infrastructure is "locked-down," legacy, or heavily restricted.

The Common Hurdles:

  • Locked-Down Clusters: Environmentally isolated pods with strict ingress and egress controls.
  • Persistence Gaps: Lack of access to managed database services (like RDS or Cloud SQL) and a "No Local Persistence" policy on compute nodes.
  • The Goal: Integrating a high-traffic Single Page Application (SPA) with a corporate Identity Provider (IdP) without ever exposing sensitive tokens to the browser.

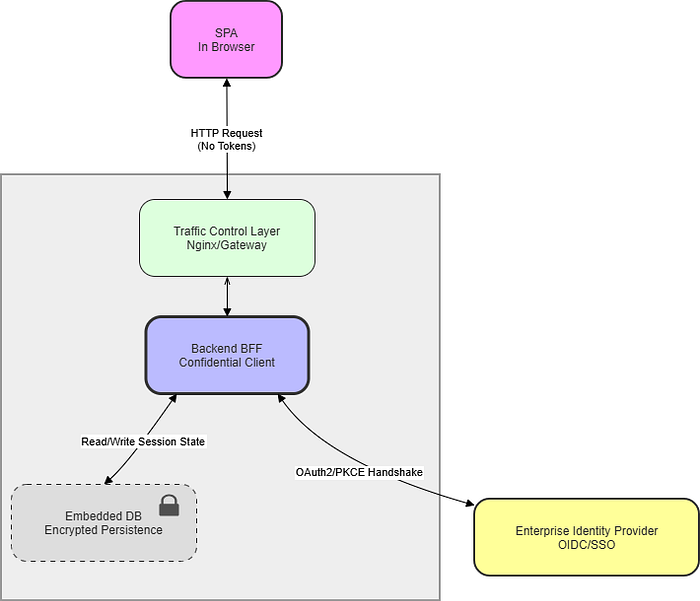

None
High-level architectural pattern for a BFF in a restricted network.

The Strategy: Architectural Decisions (ADR)

1. Decoupling the Handshake: The BFF Pattern

To mitigate the risk of XSS (Cross-Site Scripting), the architecture eliminates token storage (Access/Refresh) from the browser's LocalStorage entirely.

  • The Shift: System design moved the complexity to a Backend-for-Frontend (BFF) component. The server acts as the "Confidential Client," keeping secrets and tokens safely within the network boundary.

2. Abstracted Persistence: From Embedded to Distributed

In environments where a managed database isn't a "day-one" option, the architecture must be flexible.

  • The Approach: the architecture utilized a serverless-friendly, embedded storage engine for initial state management.
  • The Security Layer: To satisfy "Encryption at Rest" audits, Application-Layer Encryption is implemented. Session data is encrypted using a symmetric pattern (like AES-256) before it ever touches the disk.
  • Scalability: This pattern is intentionally storage-agnostic. As concurrency increases, the persistence layer can be swapped for a distributed cluster (like PostgreSQL or Redis) with zero changes to the core auth logic.

3. Hardening the Session: Secure-First Cookies

The architecture moved away from Bearer tokens in the header, opting instead for HttpOnly, Secure, and SameSite=Lax cookies.

  • The Result: This configuration prevents client-side scripts from accessing session identifiers while ensuring the reverse proxy handles session affinity seamlessly across the cluster.

The Workflow: The "Pull" Authentication Pattern

Traditional authentication often "pushes" state to the frontend. Instead, the architecture implemented a decoupled "Pull" pattern to keep the UI agnostic of the identity provider.

  1. Auth Discovery: On load, the UI hits a AUTH_STATUS_ENDPOINT endpoint. A 401 Unauthorized response triggers the redirect logic.
  2. The PKCE Handshake: The backend initiates the redirect to the IdP using a PKCE (Proof Key for Code Exchange) challenge.
  3. Secure Exchange: Upon return, the backend uses its Client Secret plus the PKCE Verifier to swap the code for tokens.
  4. State Finalization: The backend encrypts the session, writes it to the abstracted storage, sets the secure cookie, and sends the user back to the app root.
  5. The Result: The UI simply "pulls" the authenticated profile from the endpoint. It doesn't need to know how the user logged in, only that they are logged in.

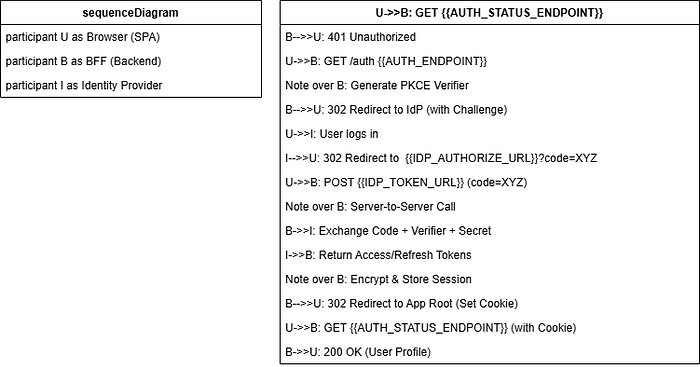

None
Sequence flow of the 'Pull' authentication pattern using PKCE and secure server-side state.

Deep Dive: Why PKCE in a Server-Side Flow?

There's a common myth that if you have a "Confidential Client" (a backend with a secret), you don't need PKCE. In high-security environments, the architecture use PKCE to defend against Authorization Code Interception.

Even if an attacker intercepts the redirect code, they cannot use it without the code_verifier held in the backend's memory for that specific session. It ensures that the browser that started the login is the only one that can finish it.

Future-Proofing and Operations

  • Observability: End-to-end request tracing ensures visibility from the entry gateway through to the encrypted storage layer, allowing for high-granularity debugging without logging sensitive data.
  • Rate Limiting: To prevent session brute-forcing, one can implement a sliding-window rate limiter at the middleware level.
  • Cost & Footprint: This architecture proves that "Zero-Trust" doesn't require a massive infrastructure bill. By leveraging embedded state management and smart encryption, the operational footprint stays lean.

For a Deeper Dive:

Final Thoughts

Architecture is the art of the possible. By combining the BFF pattern with Stateless Encrypted Cookies, you can provide a production-grade SSO experience even when the infrastructure feels like it's fighting you.

The core principle remains simple: Keep the secrets on the server and the view in the browser.
