Secure Implementation Of Link Previews In Chat Applications

Abstract

Link previews in chat applications — where the system automatically fetches a title, description, and image from a user‑supplied URL — introduce significant security risks. Attackers can exploit this functionality to perform Server‑Side Request Forgery (SSRF), Denial of Service (DoS), Cross‑Site Scripting (XSS), privacy leakage, and data exfiltration. This report analyzes these threat vectors and presents a defense‑in‑depth mitigation strategy. The recommended approach combines strict application‑level controls (URL scheme whitelisting, private IP blocklisting, timeouts, size limits, safe HTML parsing, output sanitization, IP Pinning, and aggressive caching) with network segmentation — specifically placing the preview fetcher inside a Demilitarized Zone (DMZ). The DMZ isolates the fetcher from internal networks, preventing lateral movement in case of compromise. Firewall rules allow only outbound HTTP/HTTPS requests from the DMZ to the internet and deny any direct inbound internet access or internal network connections. Additional mitigations include using a forward proxy with IP blocklists, sandboxed containers, rate limiting, and client‑side safe rendering (plain text, not HTML). This layered architecture ensures that even if the fetcher contains unknown vulnerabilities, the overall system remains resilient. The report concludes that automatic link previews can be implemented securely only when both application‑level hardening and network‑level isolation (DMZ) are enforced together.

Introduction

Modern chat applications (Telegram, Slack, WhatsApp, Microsoft Teams) enhance user experience by showing a rich preview when a user sends a link. However, the automatic fetching of arbitrary URLs expands the attack surface significantly. An attacker can craft a malicious link that, when previewed, compromises the chat server, leaks internal data, or attacks the client.

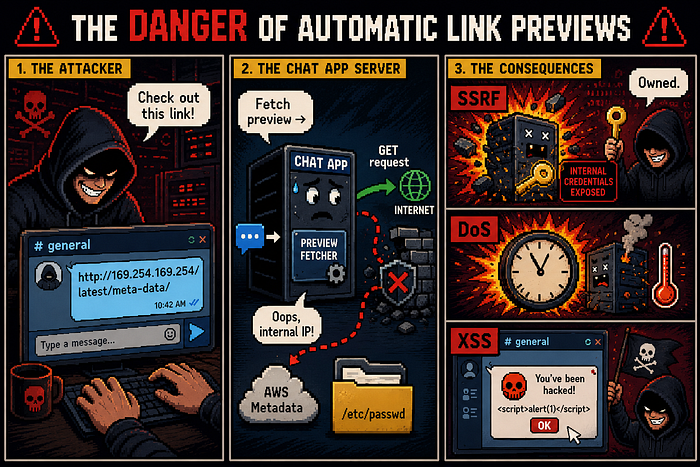

Threat Landscape: Link Preview Vulnerabilities

1. Server‑Side Request Forgery (SSRF):

1.1) Description: The preview server is tricked into making requests to internal IP addresses, localhost, cloud metadata endpoints, or internal APIs. The attacker controls the target URL.

1.2) Real word example:

CVE‑2022‑25876 (link-preview-js npm package) — SSRF due to flawed DNS rebinding protection, enabling local network scanning.

1.3) Impacts:

a) Reading cloud metadata (e.g., AWS 169.254.169.254) → credential theft.

b) Port scanning internal services.

c) Accessing internal admin panels or APIs.

d) Using file:// protocol (if allowed) to read local files and …

2. Denial of Service (DOS):

2.1) Description: Resource exhaustion caused by slow responses, huge payloads, decompression bombs, or redirect loops.

2.2) Real word example:

CVE-2023–5969(Denial of Service via Link Preview in /api/v4/redirect_location) allowing attackers to send specially crafted requests that exploit caching of large objects, leading to excessive memory consumption.

2.3) Impacts:

a) Chat service becomes unresponsive.

b) Increased cloud costs due to autoscaling triggered by many stuck requests.

3. Cross Site Scripting(XSS):

3.1) Description: The metadata (title, description) fetched from the link is rendered unsafely in the chat client, allowing script injection.

3.2) Real word example:

CVE‑2025‑11987 (WordPress Visual Link Preview) — Stored XSS due to insufficient sanitization of link preview data.

3.3) Impact:

Session hijacking, defacement, credential theft, or malware distribution.

4. Privacy Leakage And Data Exfiltration:

4.1) Description: The act of fetching a preview leaks information (IP address, User‑Agent, time) to the link owner. Additionally, sensitive data can be exfiltrated via the preview process.

4.2) Real word example:

CVE‑2018‑20436 (Telegram Secret Chat) — GET requests sent before the message is actually sent, creating a side‑channel to detect when a user views a link.

4.3) Impact:

Leak of user online status, geolocation (approximate), or private conversation snippets.

5. Protocol Smuggling & Phishing:

5.1 ) Protocol abuse — javascript://, data://, file://, gopher:// can bypass validation or lead to client‑side execution.

5.2 ) Content spoofing — Preview shows a legitimate domain (e.g., google.com) while the actual destination is evil.com. Users trust the preview and click.

6. XXE (XML External Entity):

If the link preview service processes an XML-based format (e.g., SVG, RSS, or XHTML) without disabling external entities, an attacker can inject a malicious entity that reads local files (e.g., file:///etc/passwd), performs SSRF to internal endpoints, or triggers a denial of service (e.g., Billion Laughs attack). In link previews, this commonly occurs when fetching SVG images or XML feeds that the server parses to extract metadata.

7.DNS Rebinding:

A domain is validated as safe (public IP), but after validation the DNS is changed to resolve to an internal address, tricking the fetcher into attacking internal hosts. Impact: Bypasses IP blocklists, enables SSRF on previously validated domains. Mitigation: Pin the IP after initial DNS resolution; reject any domain where the resolved IP changes between validation and fetch; use a DNS resolver that disables rebinding and do this manual (IP Pinning Method For Preparing Important Security Measurement) (e.g., by ignoring TTL=0).

Secure Implementation Architecture

A secure link preview system must be designed with defense in depth. The core principle: never trust the URL or its content.

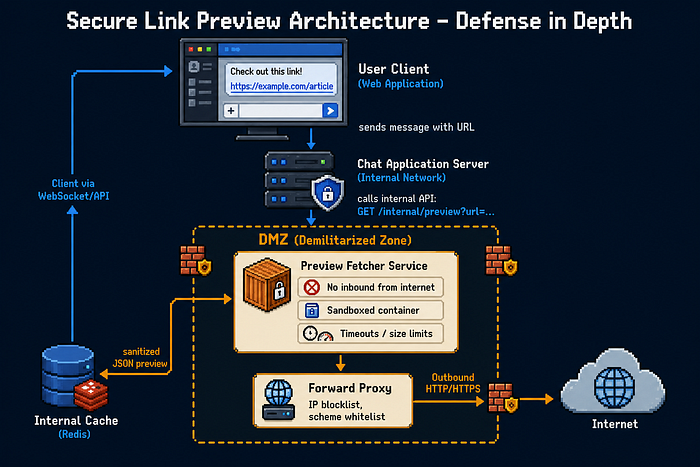

High Level Design:

Role Of The DMZ:

A DMZ is a network segment isolated from both the internet and the internal network by two firewalls.

1) Why a DMZ for link previews?

1. The preview fetcher must initiate connections to arbitrary user‑controlled URLs — this is inherently dangerous.

2. If the fetcher is compromised (e.g., via a buffer overflow in an HTML parser), the attacker lands in the DMZ, not on your core application or database servers.

3. From the DMZ, lateral movement to the internal network is blocked by firewall rules (only established/related responses allowed back, no new connections).

Application‑Level Defenses (Inside the Fetcher):

Even with a DMZ, the fetcher must implement strict controls:

1.URL Validation & Scheme Whitelist:

1. Allow only http:// and https://.

2. Reject file://, javascript://, data://, gopher://, ftp://.

3. Normalize and re‑validate after each redirect.

2.Block Internal IPs & Reserved Ranges:

1. Deny requests to: 127.0.0.0/8, 10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16, 169.254.0.0/16, ::1, fc00::/7.

2. Use a DNS resolver that rejects internal hostnames (localhost, internal‑api).

3.Timeouts & Size Limits:

1. Connection timeout: 5 seconds

2. Read timeout: 10 seconds total

3. Max download size: 2 MB for HTML, 10 MB for images (then compress/resize)

4. Max redirects: 5 (re‑validate each target)

5. Disable compression (gzip, deflate) to avoid decompression bombs.

4.Safe HTTP Fetching:

1. Use HEAD request first to check Content‑Length and Content‑Type.

2. Never send cookies, authentication headers, or custom User‑Agent. Use (User‑Agent: LinkPreviewBot/1.0)

3. Ignore Set‑Cookie responses.

5.HTML & Metadata Sanitization:

1. Parse HTML with a non‑JavaScript parser (e.g., lxml with defusedxml, Go's html.Parse).

2. Extract only: og:title, og:description, og:image, twitter:card,
