Some people may have encountered this kind of confusion at work:
- When implementing login functionality, should we use Session or JWT?
- What is the relationship between OAuth2 and Token?
- Why do some solutions store the token in a cookie?
This article will discuss this topic with you today, and I hope it will be helpful.
I. Let's start with the restaurant dining model. 🍽️

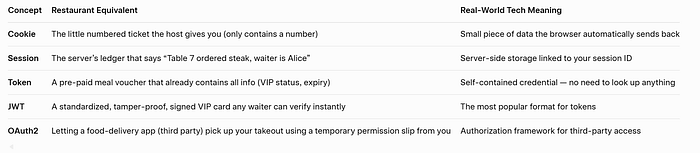

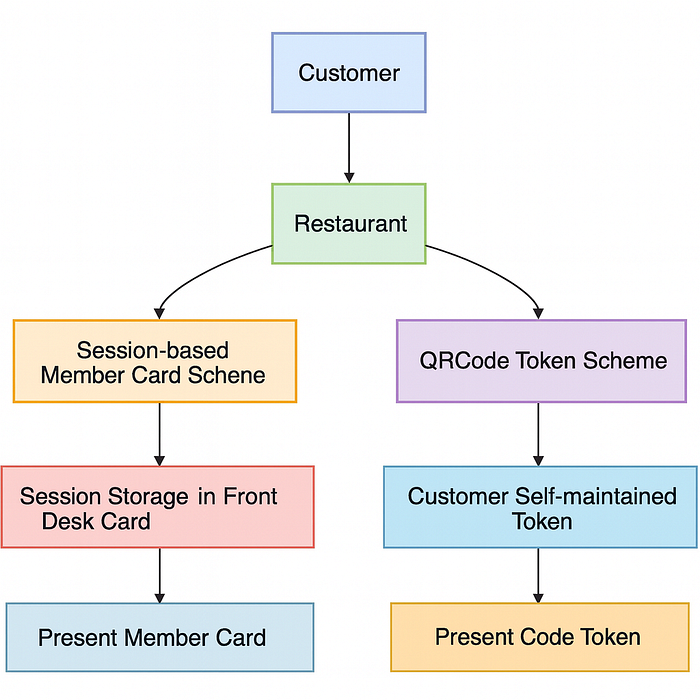

To help you understand better, let me first use the analogy of dining in a restaurant to explain these concepts:
Now, let's delve into the technical details of each concept.
II. Cookie: HTTP's Global Identity Card 🍪
2.1 What is a Cookie?
Cookies are small pieces of text data stored on the browser side. They are sent to the browser by the server through a field in the HTTP response header Set-Cookie, and the browser will automatically send them back to the server in the header on each subsequent request.
- Working principle: The browser acts as the carrier, automatically transmitting the data for the server to maintain state.
2.2 Practical Cookie Code
// Server sets the Cookie
@PostMapping("/login")
public ResponseEntity login(@RequestBody User user, HttpServletResponse response) {
if (authService.authenticate(user)) {
Cookie cookie = new Cookie("session_id", generateSessionId());
cookie.setMaxAge(3600); // 1 hour validity
cookie.setHttpOnly(true); // Prevent XSS attack
cookie.setSecure(true); // HTTPS transmission only
cookie.setPath("/"); // Valid for the entire site
response.addCookie(cookie);
return ResponseEntity.ok().build();
}
return ResponseEntity.status(401).build();
}
// Read the Cookie
@GetMapping("/profile")
public ResponseEntity getProfile(@CookieValue("session_id") String sessionId) {
User user = sessionService.getUserBySession(sessionId);
return ResponseEntity.ok(user);

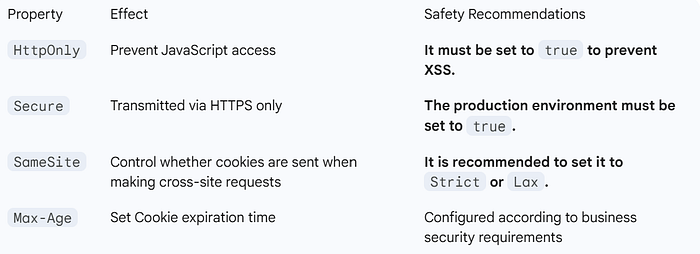

}2.3 Key Attributes of Cookies
III. Session: Server-side user profile 💾
3.1 What is a Session?
A session is user state information stored on the server side. The server creates a unique session ID for each user and typically passes this ID to the browser via a cookie (the Session ID cookie). The browser includes this ID in subsequent requests, allowing the server to identify the user and retrieve their stored state.
- Session storage structure:
// Typical Session data structure
public class UserSession {
private String sessionId;
private String userId;
private String username;
private Date loginTime;
private Date lastAccessTime;
private Map<String, Object> attributes; // Custom attributes
// Omitted getter/setter
}3.2 Session Practical Code
// Spring Session based implementation
@PostMapping("/login")
public String login(@RequestParam String username,
@RequestParam String password,
HttpSession session) {
User user = userService.authenticate(username, password);
if (user != null) {
// Store user information in Session
session.setAttribute("currentUser", user);
session.setAttribute("loginTime", new Date());
return "redirect:/dashboard";
}
return "login?error=true";
}
@GetMapping("/dashboard")
public String dashboard(HttpSession session) {
// Get user information from Session
User user = (User) session.getAttribute("currentUser");
if (user == null) {
return "redirect:/login";
}
return "dashboard";
}3.3 Session Storage Scheme
- Memory storage (default): Simple, but not suitable for clusters.
# application.yml
server:
servlet:
session:
timeout: 1800 # 30 minutes expiration time- Redis distributed storage: Solves the cluster synchronization issues.
@Configuration
@EnableRedisHttpSession // Enable Redis Session storage
public class SessionConfig {
@Bean
public LettuceConnectionFactory connectionFactory() {
return new LettuceConnectionFactory();
}
}- Session cluster synchronization issues: In a load-balanced environment, requests might hit different servers. Distributed storage (like Redis or database) is required to ensure session consistency across all servers.
IV. Token: Decentralized Identity Token 🔑
4.1 What is a Token?
A token is a self-contained identity credential. The server does not necessarily need to store session state; all necessary authentication information is often contained within the token itself (especially for structured tokens like JWT). This is the foundation of stateless authentication.
Key DifferencesSessionTokenState StorageServer-side (heavy load on server memory/store)Client-side (token itself is stored by the client)ScalabilityPoor for distributed environments (requires session sharing)Excellent (stateless, easy to scale)Cross-DomainDifficult (Cookie restrictions)Easy (passed in HTTP Header)
4.2 Practical Token Code
The following example uses the JWT standard for token implementation:
// Generate Token
public String generateToken(User user) {
long currentTime = System.currentTimeMillis();
return JWT.create()
.withIssuer("myapp") // Issuer
.withSubject(user.getId()) // User ID
.withClaim("username", user.getUsername())
.withClaim("role", user.getRole())
.withIssuedAt(new Date(currentTime)) // Issued time
.withExpiresAt(new Date(currentTime + 3600000)) // Expiration time
.sign(Algorithm.HMAC256(secret)); // Signing key
}
// Validate Token
public boolean validateToken(String token) {
try {
JWTVerifier verifier = JWT.require(Algorithm.HMAC256(secret))
.withIssuer("myapp")
.build();
DecodedJWT jwt = verifier.verify(token);
return true;
} catch (JWTVerificationException exception) {
return false;
}
}V. JWT: A Modern Token Standard 🛡️
5.1 What is JWT?
JWT (JSON Web Token) is an open standard (RFC 7519) for securely transmitting information as a JSON object between parties.
This information can be verified and trusted because it is digitally signed.
- JWT structure:
header.payload.signature- Decoding example:
// Header
{
"alg": "HS256",
"typ": "JWT"
}
// Payload
{
"sub": "1234567890",
"name": "John Doe",
"iat": 1516239022,
"exp": 1516242622
}
// Signature
HMACSHA256(
base64UrlEncode(header) + "." +
base64UrlEncode(payload),
secret)5.2 JWT Practical Code
// Create JWT
public String createJWT(User user) {
return Jwts.builder()
.setHeaderParam("typ", "JWT")
.setSubject(user.getId())
// ... claims, issuer, etc.
.setExpiration(new Date(System.currentTimeMillis() + 3600000))
.claim("username", user.getUsername())
.signWith(SignatureAlgorithm.HS256, secret.getBytes())
.compact();
}
// Parse JWT
public Claims parseJWT(String jwt) {
return Jwts.parser()
.setSigningKey(secret.getBytes())
.parseClaimsJws(jwt)
.getBody();
}
// Using JWT in Spring Security
@Component
public class JwtFilter extends OncePerRequestFilter {
@Override
protected void doFilterInternal(HttpServletRequest request,
HttpServletResponse response,
FilterChain chain) {
String token = resolveToken(request);
if (token != null && validateToken(token)) {
Authentication auth = getAuthentication(token);
SecurityContextHolder.getContext().setAuthentication(auth);
}
chain.doFilter(request, response);
}
}5.3 Best Practices for JWT
- Secure storage:
- Not recommended:
localStorage(vulnerable to XSS attacks). - Recommended:
HttpOnlyCookie (prevents XSS) or in-memory storage in the frontend. - Token refresh mechanism: Implement a dual-token strategy to mitigate the risk of long-lived tokens being compromised.
- Access Token: Short-term validity (e.g., 1 hour).
- Refresh Token: Long-term validity (e.g., 7 days).
// Dual Token Mechanism: Access Token + Refresh Token
public class TokenPair {
private String accessToken; // Short-term validity: 1 hour
private String refreshToken; // Long-term validity: 7 days
}
// Refresh Token interface
@PostMapping("/refresh")
public ResponseEntity refresh(@RequestBody RefreshRequest request) {
String refreshToken = request.getRefreshToken();
if (validateRefreshToken(refreshToken)) {
String userId = extractUserId(refreshToken);
String newAccessToken = generateAccessToken(userId);
return ResponseEntity.ok(new TokenPair(newAccessToken, refreshToken));
}
return ResponseEntity.status(401).build();
}VI. OAuth 2.0: The King of Authorization Frameworks 👑
6.1 What is OAuth 2.0?
OAuth 2.0 is an authorization framework that allows third-party applications to access protected resources on behalf of users after obtaining their authorization.
OAuth 2.0 Roles:
- Resource Owner: User
- Client: Third-party application
- Authorization Server: Issues access tokens
- Resource Server: Hosts protected resources
6.2 OAuth 2.0 Authorization Code Process
6.3 Practical Code for OAuth 2.0
// Spring Security OAuth2 Configuration
@Configuration
@EnableAuthorizationServer
public class AuthorizationServerConfig extends AuthorizationServerConfigurerAdapter {
@Autowired
private AuthenticationManager authenticationManager;
@Override
public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
clients.inMemory()
.withClient("clientapp")
.secret(passwordEncoder.encode("123456"))
.authorizedGrantTypes("authorization_code", "refresh_token")
.scopes("read", "write")
.redirectUris("http://localhost:8080/callback");
}
@Override
public void configure(AuthorizationServerEndpointsConfigurer endpoints) {
endpoints.authenticationManager(authenticationManager)
.tokenStore(tokenStore())
.accessTokenConverter(accessTokenConverter());
}
}
// Resource Server Configuration
@Configuration
@EnableResourceServer
public class ResourceServerConfig extends ResourceServerConfigurerAdapter {
@Override
public void configure(HttpSecurity http) throws Exception {
http.authorizeRequests()
.antMatchers("/api/public/**").permitAll()
.antMatchers("/api/private/**").authenticated()
.antMatchers("/api/admin/**").hasRole("ADMIN");
}
}VII. Comparison of Five Major Concepts 📊
To help everyone better understand the relationships and differences between these five concepts, here is a comparison table:

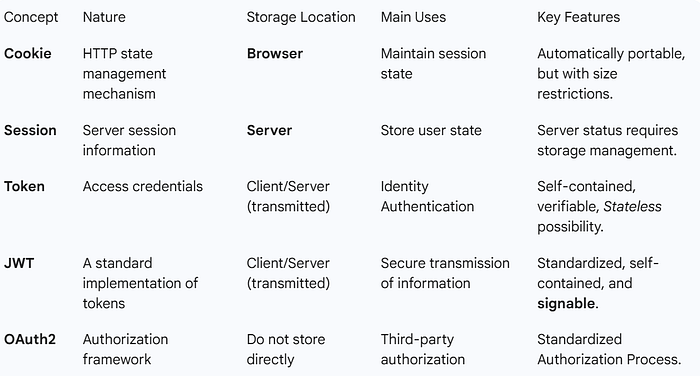

7.1 Functional Positioning Comparison

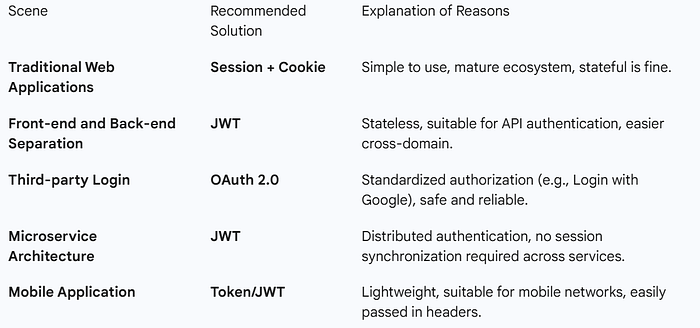

7.2 Comparison of Application Scenarios

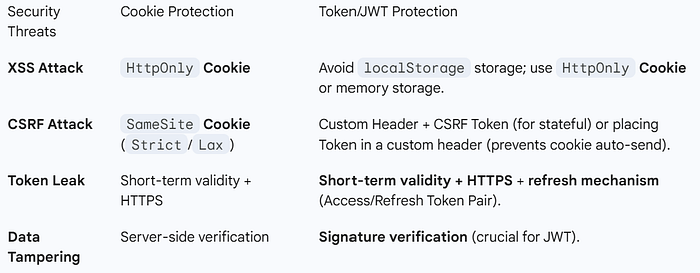

7.3 Comparison of Safety Considerations
Summarize ✨
Through today's in-depth discussion, we can draw the following conclusions:
- Cookies are carriers: The state management mechanism of the HTTP protocol, and one of the mediums for transmitting session IDs and tokens.
- Session refers to state: The server-side user state that needs to be implemented using a carrier (like a Cookie with a Session ID).
- A token is a credential: A credential for authentication and authorization, which can be placed in a cookie, header, or URL.
- JWT is a standard: A standardized implementation of tokens that is self-contained, verifiable, and trustworthy due to its signature.
- OAuth2 is a framework: An authorization framework that defines a complete third-party authorization process.
Final Recommendation:
- Simple Web Applications: Session + Cookie
- Front-end and Back-end Separation / Microservices: JWT + HTTP Header
- Third-party Authorization: OAuth 2.0 + JWT
There is no best solution, only the most suitable solution.

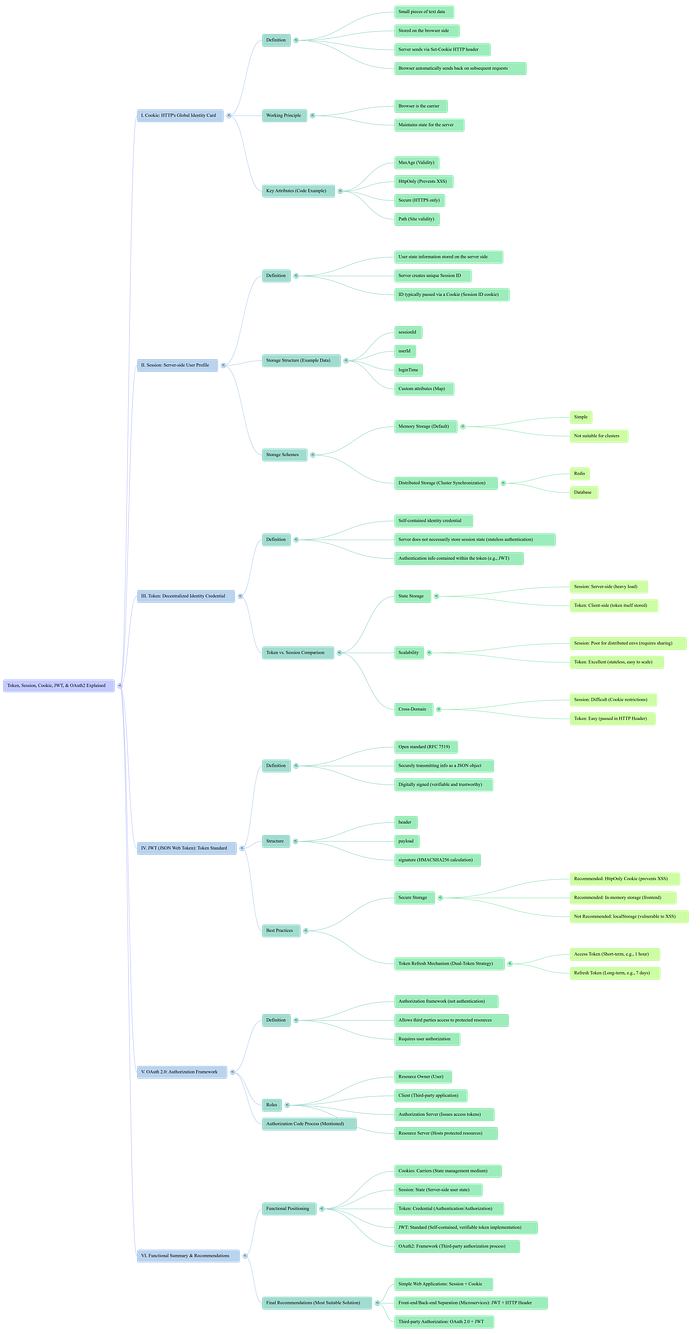

Below is the mind map for quick reference -
Understanding the essence and applicable scenarios of each technology is essential for making the right architectural decisions.
