Advanced RedisVL Long-term Memory Tutorial: Using an LLM to Extract Memories. Image by DALL-E-3

February 6, 2026

Advanced RedisVL Long-term Memory Tutorial: Using an LLM to Extract Memories

Building an intelligent, context-aware memory system

By Peng Qian

10 min read

Agentic AI

Introduction

In this weekend note, we keep talking about how to build long-term memory for an agent with RedisVL.

When we build a long-term memory module for an agent, we need to care about two points most:

  • After long running, will the saved memories grow too large and cause context explosion?
  • How do we recall the memories that matter most to the current context?

We will solve these two problems today.

TLDR: In this hands-on tutorial, we first use an LLM to extract information from user messages that has value for later chats. Then we store that as long-term memory in RedisVL. When needed, we search related memories with semantic search. With this setup, the agent understands the past context of the user and gives more accurate answers.

After using an LLM to extract memories, how my long‑term memory module runs.

With this kind of long-term memory, we do not worry about memory explosion after long running. We also do not worry that unrelated memories will hurt LLM responses.

You can get all the source code at the end of this post.

Why do we do this?

In the last hands-on post, I shared how to build short-term and long-term memory for an agent with RedisVL:

Build Long-Term and Short-Term Memory for Agents Using RedisVL Discover how to use RedisVL to build short and long-term memory in Microsoft Agent Framework agents, with setup steps…

The short-term part works very well. RedisVL API feels much simpler than the raw Redis API. I can write that code with little effort.

The long-term part does not work. We follow the official example and store user queries and LLM responses in RedisVL. When chat continues, RedisVL keeps pulling repeated queries or unrelated answers via semantic search. This troubles the LLM a lot and blocks the chat from going on.

Can we avoid RedisVL?

Your boss will not agree. There is already Redis in your stack. Why do you still want to install mem0 or other open source tools? How about extra cost? This is real life.

So we still need to make RedisVL work. But I do not want to run around like a headless fly. Before that I want to see how humans handle memory.

How Humans Handle Memory

What deserves memory

First, we need to know one thing. Only information that centers on me and links to me tightly deserves a sticky note.

So what information about me do I want to write down?

  • Preference settings such as tools I like, languages I use, my schedule, and my tone when I talk
  • Stable personal info such as my role, my time zone, and my daily habits
  • Goals and decisions, such as chosen options, plans, and sentences that start with "I decide to…"
  • Key milestones such as job change, moving, deadlines, and product launches
  • Work and project context, such as project names, stakeholders, needs, and status like "done/next" step.
  • Repeated pain points or strong views that will change LLM advice later
  • Things I say with "remember this …" or "do not forget …"

What does not deserve memory

I do not plan to store any LLM answer. LLM answers to the same question will change with context. So LLM answers in long-term memory do not help much.

Besides LLM answers, I also do not want to keep these:

  • One-time small things that likely will not matter later
  • Very sensitive personal data such as health diagnosis, exact address, government IDs, passwords, bank accounts
  • Things I clearly ask not to remember
  • Things I already wrote down on the sticky note

Design a Prompt for LLM Memory Extraction

Now we know how humans handle memory. Next, I want to build an agent that follows the same rules and extracts memories from my daily chats.

The key lives in the system prompt. I need to describe all rules in the system prompt. Then I ask the agent to follow these rules with very high consistency.

In the past, I might have tried some "write 1000-line prompt" challenge. Now I do not need that. I just open any LLM client, paste these rules, then ask the LLM to help me write a system prompt. This takes less than one minute.

After a few tries, I pick one I like. Here is that system prompt:

Your job:
Based only on the user’s current input and the existing related memories, decide whether you need to add a new “long-term memory,” and if needed, **extract just one fact**. You do not talk to the user. You only handle memory extraction and deduplication.

---

### 1. Core principles

1. Only save information that **will likely be useful in the future**.
2. **At most one fact per turn**, and it must clearly appear in the current input.
3. **Never invent or infer anything**. You can only restate or lightly rephrase what the user has explicitly said.
4. If the current input has nothing worth keeping, or the information is already in the related memories, then do not add a new memory.

---

### 2. What counts as “long-term memory”

Only consider the categories below, and decide whether the information has long-term value:

...

Due to space, I only show part of the prompt here. You can get the full prompt from the source code at the end.

Build a ContextProvider for Long-term Memory

After we finish the memory extraction rules, we start to build the long-term memory module for the agent.

For future use, I still pick Microsoft Agent Framework MAF. It gives a ContextProvider feature that lets us plug long-term memory into the agent in a simple way.

Of course the principle of long-term memory stays the same. You can use any agent framework you like and build your own memory module. Or you can ignore frameworks and first build storage and retrieval of memories, and then call them through function calls. That is fine.

Run memory extraction in sequence

In the last post, I already built a long-term memory module with ContextProvider. The new version looks similar. But this time, we use an LLM to extract memories. So after we set up ContextProvider, we first use the system prompt to build a memory extraction agent.

If you do not know how to use ContextProvider yet, I suggest you read my last post again. That post explains ChatMessageStore and ContextProvider in Microsoft Agent Framework in detail:

Build Long-Term and Short-Term Memory for Agents Using RedisVL Discover how to use RedisVL to build short and long-term memory in Microsoft Agent Framework agents, with setup steps…

To avoid too much unrelated data from Redis, I set the distance_threshold value pretty small. But not too small. If too small, then it loses meaning. You can pick the value you like.

class LongTermMemory(ContextProvider):
    def __init__(
        self,
        thread_id: str | None = None,
        session_tag: str | None = None,
        distance_threshold: float = 0.3,
        context_prompt: str = ContextProvider.DEFAULT_CONTEXT_PROMPT,
        redis_url: str = "redis://localhost:6379",
        embedding_model: str = "BAAI/bge-m3",
        llm_model: str = Qwen3.NEXT,
        llm_api_key: str | None = None,
        llm_base_url: str | None = None,
    ):
        ...
        self._init_extractor()

    def _init_extractor(self):
        with open("prompt.md", "r", encoding="utf-8") as f:
                system_prompt = f.read()

        self._extractor = OpenAILikeChatClient(
            model_id=self._llm_model,
        ).as_agent(
            name="extractor",
            instructions=system_prompt,
            default_options={
                "response_format": ExtractResult,
                "extra_body": {"enable_thinking": False}
            },
        )

Next we implement the invoking method. This method runs before the user agent calls the LLM. In this method, we extract and store long-term memory

To make the logic clear, I first implement the invoking method in order, as in this diagram:

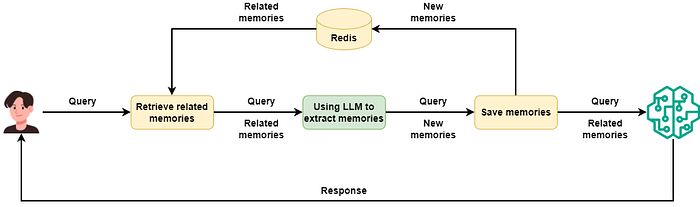

Run the memory extraction logic step by step in order.

When a new user request comes into ContextProvider, we first search RedisVL with semantic search for the most similar memories.

class LongTermMemory(ContextProvider):
    ...

    async def invoking(
        self,
        messages: ChatMessage | MutableSequence[ChatMessage],
        **kwargs: Any
    ) -> Context:
        if isinstance(messages, ChatMessage):
            messages = [messages]
        prompt = "\n".join([m.text for m in messages])

        line_sep_memories = self._get_line_sep_memories(prompt)
        ...

    def _get_line_sep_memories(self, prompt: str) -> str:
        context = self._semantic_store.get_relevant(prompt, role="user", session_tag=self._session_tag)
        line_sep_memories = "\n".join([f"* {str(m.get("content", ""))}" for m in context])

        return line_sep_memories

Next, we send these existing memories plus the user request to the memory extraction agent. That agent first checks if anything is worth saving according to the rules. Then it extracts a new helpful memory from the user request and saves it into RedisVL.

class LongTermMemory(ContextProvider):
    ...

    async def invoking(
        self,
        messages: ChatMessage | MutableSequence[ChatMessage],
        **kwargs: Any
    ) -> Context:
        ...
        await self._save_memory(messages, line_sep_memories)
        ...

    async def _save_memory(
        self,
        messages: ChatMessage | MutableSequence[ChatMessage],
        relevant_memory: str | None = None,
    ) -> None:
        detect_messages = (
            [
            ChatMessage(role=Role.USER, text=f"Existing related memories：\n\n{relevant_memory}"),
            ] + list(messages)
            if relevant_memory.strip()
            else list(messages)
        )
        response = await self._extractor.run(detect_messages)

        extract_result: ExtractResult = cast(ExtractResult, response.value)
        if extract_result.should_write_memory:
            self._semantic_store.add_messages(
                messages=[
                    {"role": "user", "content": extract_result.memory_to_write}
                ],
                session_tag=self._session_tag,
            )

Last, we put the memories from RedisVL into Context as extra context. These memory messages get merged into the history of the real chat agent. They give the chat agent extra background to produce answers.

class LongTermMemory(ContextProvider):
    ...

    async def invoking(
        self,
        messages: ChatMessage | MutableSequence[ChatMessage],
        **kwargs: Any
    ) -> Context:
        ...

        return Context(messages=[
            ChatMessage(role="user", text=f"{self._context_prompt}\n{line_sep_memories}")
        ] if len(line_sep_memories)>0 else None)

Now we build a simple chat agent to test the new long-term memory module:

agent = OpenAILikeChatClient(
    model_id=Qwen3.MAX
).as_agent(
    name="assistant",
    instructions="You are a helpful assistant.",
    context_provider=LongTermMemory(),
)

async def main():
    thread = agent.get_new_thread()

    while True:
        user_input = input("\nUser: ")
        if user_input.startswith("exit"):
            break
        stream = agent.run_stream(user_input, thread=thread)
        print("Assistant: \n")
        async for event in stream:
            print(event.text, end="", flush=True)
        print("\n")

if __name__ == "__main__":
    asyncio.run(main())

Now we chat with the agent and see how it works:

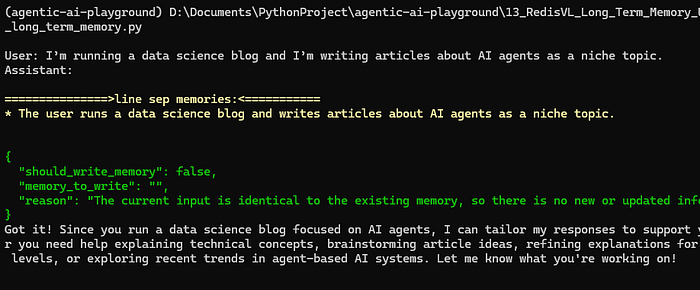

The yellow parts are memories fetched from RedisVL, and the green parts are memories extracted by the LLM.

From MLFlow we see that the retrieved memories go in as a separate message in the chat history:

The retrieved memory will be added to the chat history as a separate message.

Then we check Redis and see what memories we saved:

The info that the LLM pulls out from the user's past conversations will be saved into Redis as valuable memories.

We can see that as the chat goes on, the new long-term memory module no longer stores and retrieves all chat history without filter. It keeps and retrieves only memories that matter to the user, and these memories give strong help in later chats.

Use concurrency to speed up

Everything looks fine except for the part where we use an LLM to extract memories that deserve saving.

The largest delay in an agent often comes from LLM calls. Now we add one more LLM call. We also need to wait for the LLM to decide whether to save memory before we go on with the real chat.

We can add some logs and see how much delay we add:

Every time we use the LLM to pull out memories, it takes a bit more than one second.

We add more than one second per chat turn.

One way to optimize is to use a smaller model like qwen3-8b. But the gain stays small. We save little time and hurt memory quality due to the smaller model.

Today I use a different way. I use concurrent programming so that the LLM call for memory extraction and the LLM call for user reply run at the same time.

Let us see the result after that change:

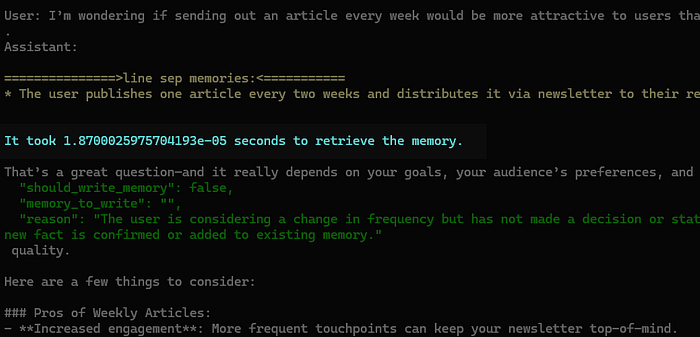

The memory retrieval step basically doesn't take any time at all, so how did I pull that off?

The time cost for extraction and storage of memory becomes almost nothing while the effect stays the same. How do we reach that?

If you built multi-agent workflows with LangGraph or LlamaIndex, you have likely seen the fan-out idea. It lets many nodes run at the same time, and then you take the final result.

The base idea uses the asyncio module in Python. You often see async and await when you write agent code. I wrote many posts in the past about asyncio and concurrency:

Use These Methods to Make Your Python Concurrent Tasks Perform Better Best practices for asyncio.gather, asyncio.as_completed, and asyncio.wait

In short, when you face delays because of long IO calls, you can use concurrent programming.

Note: If you use mlflow.openai.autolog() to trace LLM calls, you may see that concurrent runs stop working. I still do not know why. I suggest you comment out MLFlow parts before you go on.

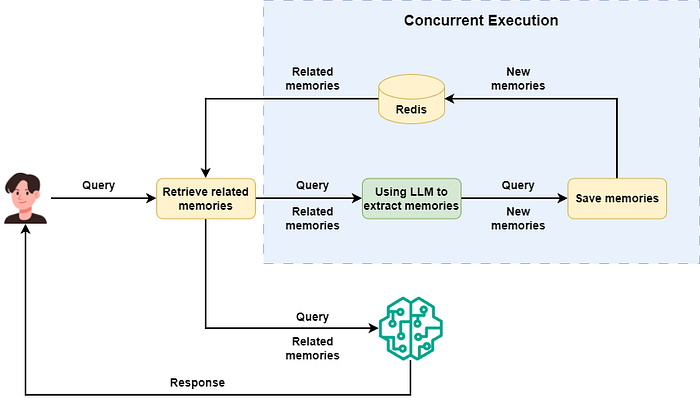

By running the memory retrieval process with concurrent programming.

Back to our current case. We see that _save_memory is an async method. That means we can run it with concurrency.

How do we do that? Very simple. When we call _save_memory, we use asyncio.create_task to build a new concurrent task. That is all.

class LongTermMemory(ContextProvider):
    ...

    async def invoking(
        self,
        messages: ChatMessage | MutableSequence[ChatMessage],
        **kwargs: Any
    ) -> Context:
        ...
        asyncio.create_task(self._save_memory(messages, line_sep_memories))
        ...

Since real user chat often takes more time than memory extraction, we do not need to wait for that task in code. We only need to create the task.

With that, we add a memory extraction module that does not bring much extra delay to the agent system.

Conslusion

Redis now serves as standard infra for many companies. With RedisVL, it can cache and search information by semantics. This makes it easier to build short-term and long-term memory on top of Redis.

But if you build long-term memory with RedisVL API directly, you may not see good results. The system has no "brain" to judge which information deserves long-term storage and keeps value over time.

So in this tutorial, I first use an agent to extract useful memories and then write them into RedisVL. This improves the value of saved information. Long-term memory works much better now and fills the gap in my last post.

I also share a short guide on how to use concurrent programming so that many LLM calls run at the same time. This cuts system delay by a lot. If you like concurrency, you can read my old posts.

Thanks for reading. If you have any questions or ideas, leave me a note. I will reply as soon as I can.

Do not forget to subscribe to my blog and follow my new work in AI applications.

Also share this post with your friends. It may help more people.

Here is the source code for this hands-on tutorial:

agentic-ai-playground/13_RedisVL_Long_Term_Memory_Updated at main · qtalen/agentic-ai-playground Contribute to qtalen/agentic-ai-playground development by creating an account on GitHub.
