Design patterns rarely fail because they are "wrong." They fail because we reach for them at the wrong moment, for the wrong reason, or as a substitute for naming the real problem. Usually, the hard part is not remembering that Strategy exists, it is deciding whether Strategy is what your code needs right now, or whether a simpler move would do more.

If you're not a member of Medium, you can read the full story free here.

This is why a decision tree helps. It forces one step of discipline before you pick a pattern: you describe the friction you are trying to remove.

Are you struggling with object creation that keeps getting more complex? Are you fighting boundaries between components or external dependencies? Or is the main issue that behaviour keeps changing and your code is adding conditionals?

The goal of this article is to give you a small set of questions that lead to a short list of patterns that fit your situation. You still need judgment, but you will spend less time guessing and more time making decisions.

Why design patterns are useful?

Patterns earn their place when they reduce a recurring cost. In practice, that cost usually looks like one of these:

• changes require touching too many files
• tests are slow or brittle because the code has no clean seam
• external APIs leak into domain logic and spread "translation" code everywhere
• constructors and initialization code keep growing, and valid combinations become unclear
• the same logic is duplicated because there is no stable place for it to live

The mistake is treating a pattern as an upgrade in itself. It is not. A pattern is a way of paying for flexibility in a controlled place instead of paying for it everywhere, repeatedly.

The decision tree in three questions

Start with one question: where is the pain coming from?

Then narrow down:

1. Is the pain about creating objects?
2. Is the pain about how objects fit together?
3. Is the pain about behaviour that changes across cases or over time?

These map to creational, structural, and behavioural patterns. You can ignore the categories if you want; the questions are what matter.

Branch 1: Creating objects (Creational patterns)

Use this branch when creation logic becomes its own problem: too many parameters, repeated setup, unclear defaults, or "which implementation should I create here?" logic spread across the codebase.

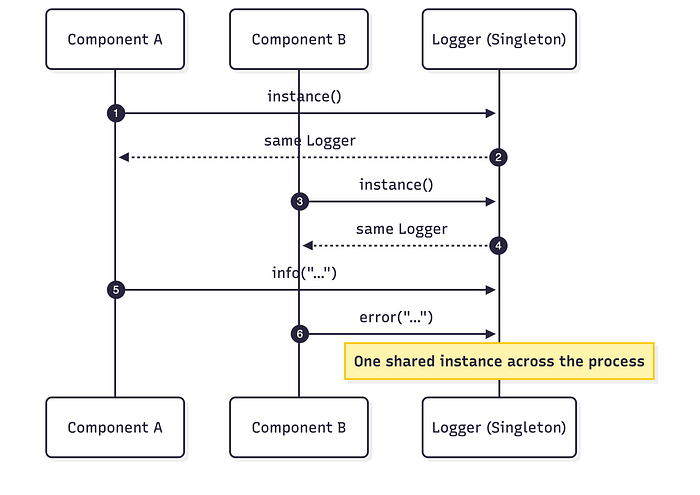

Step 1: Do you truly need exactly one instance?

If you reach for Singleton, be specific about why. "Easy access" is not a strong reason; it often hides dependencies and makes tests harder.

Singleton can be reasonable when the object is effectively stateless or safe to share (for example: a read-only config snapshot, a process-wide logger wrapper). It becomes risky when it stores mutable state, request context, or anything that must be reset between tests.

If what you want is controlled construction and explicit wiring, dependency injection or a small application container tends to age better than a global instance.

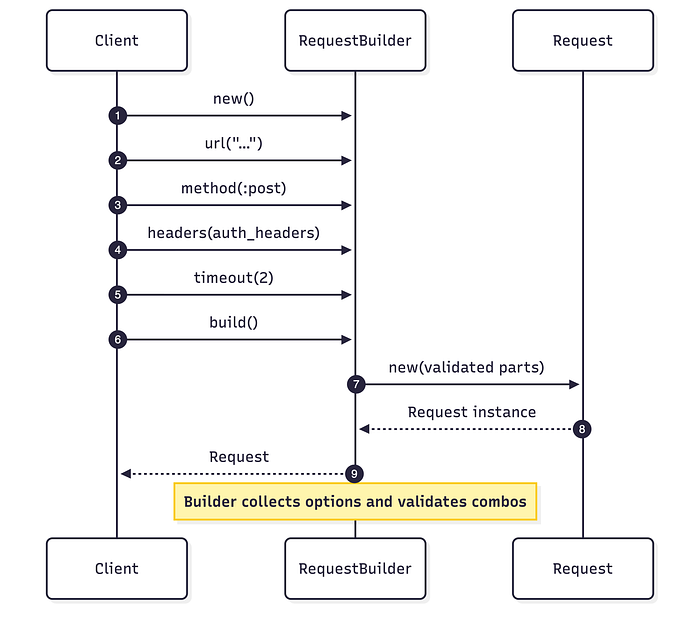

Step 2: Is construction complex or easy to misuse?

When constructors accumulate optional arguments and configuration combinations start to matter, Builder is usually the cleanest move. The point is not chaining for aesthetics; the point is making object creation explicit and validating it early.

# Without a Builder: hard to read and easy to misuse
request = Request.new(url, method, headers, body, timeout, retry_count, cache, auth)

# With a Builder: clearer intent, easier validation
request = RequestBuilder.new
  .url("https://api.example.com")
  .method(:post)
  .headers(auth_headers)
  .timeout(2)
  .build

Builders also make it easier to expose a small set of "known good" presets (for example: a default retry strategy) without forcing every caller to assemble a long argument list.

Step 3: Are you choosing implementations based on context?

When code repeatedly decides which concrete class to instantiate based on configuration, file type, provider, feature flags, or environment, that decision should be centralised.

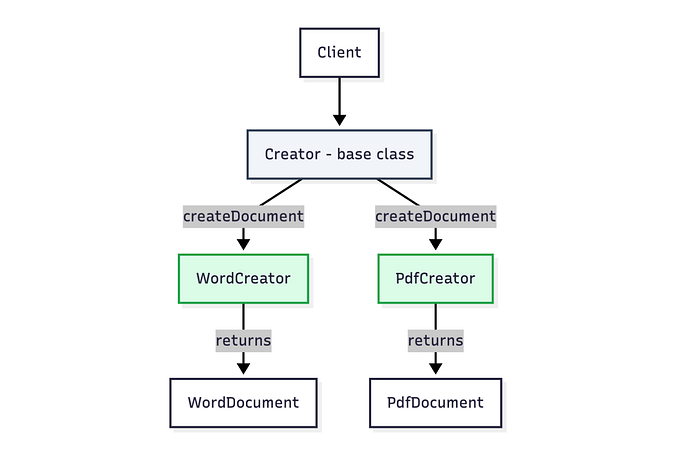

• Factory Method works well when a base class defines a contract and subclasses decide what concrete type to create.

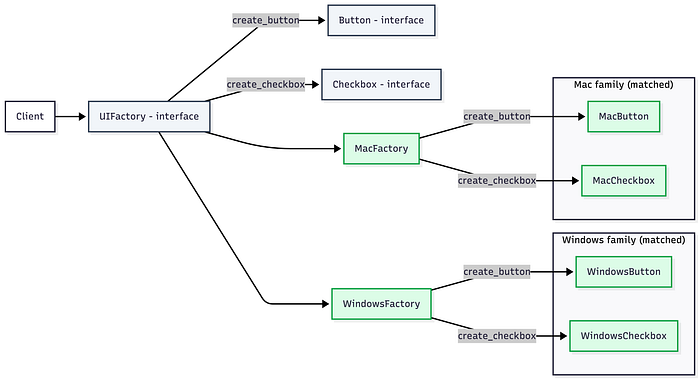

• Abstract Factory fits when you need a family of related objects that must match each other (for example: provider-specific client + mapper + validator).

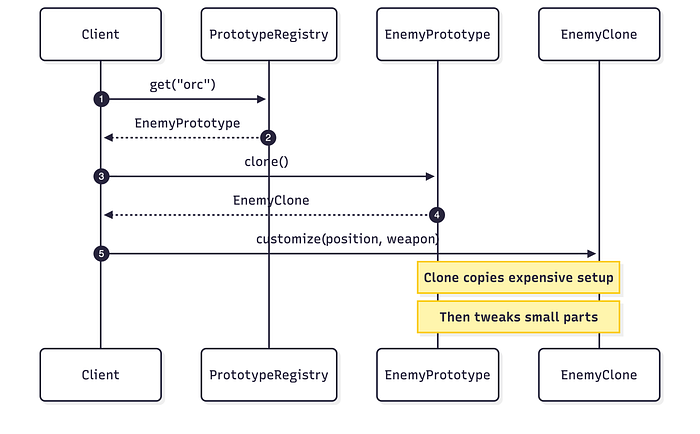

• Prototype is useful when cloning an existing configured object is cheaper or safer than rebuilding it, especially if initialisation is expensive.

Branch 2: Structuring objects (Structural patterns)

Use this branch when code is correct but awkward because boundaries are unclear: external interfaces bleed into application logic, subsystems require too many steps to use safely, or composition is hard to manage.

Step 1: Are you bridging incompatible interfaces?

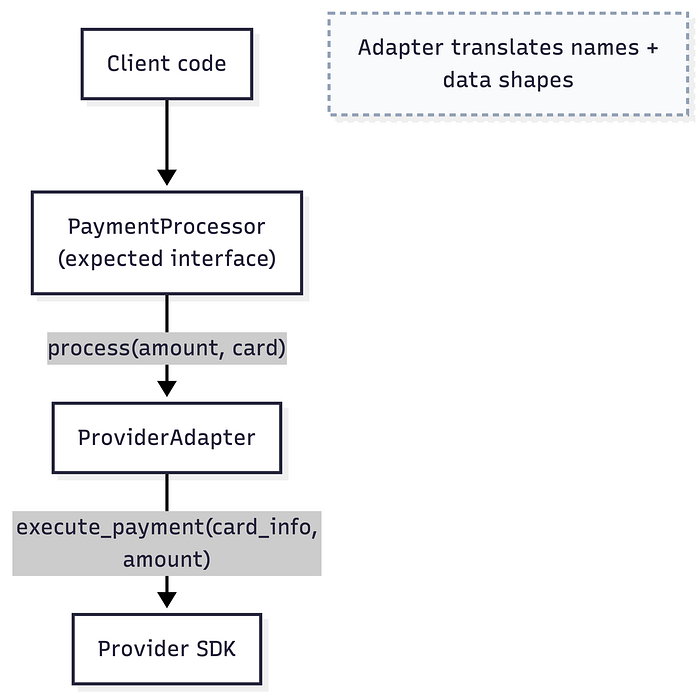

When your internal code expects one interface and an external dependency provides another, Adapter is the straightforward solution. It protects your domain from vendor-specific shapes and naming.

# Your app expects:
payment_processor.process(amount, card)

# Provider offers:
provider.execute_payment(card_info, transaction_amount)

class ProviderAdapter
  def initialize(provider)
    @provider = provider
  end

  def process(amount, card)
    @provider.execute_payment(card.to_provider_format, amount)
  end
end

A useful rule: keep adapters focused on translation. When an adapter starts containing business rules, split those rules into a separate component so the boundary stays clean.

Step 2: Is a subsystem too complex to use correctly?

If a library or internal subsystem has multiple steps that must be invoked in the right order, introduce a Facade. A good facade makes the safe path easy and reduces the chance that engineers will call low-level pieces incorrectly.

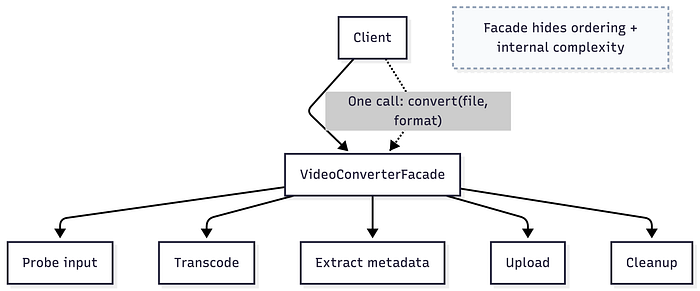

Example: a "video conversion" workflow might involve probing, transcoding, metadata extraction, storage upload, and cleanup. A facade can expose a single entry point, while leaving the internal orchestration free to evolve.

Step 3: Do you need optional features without subclass explosion?

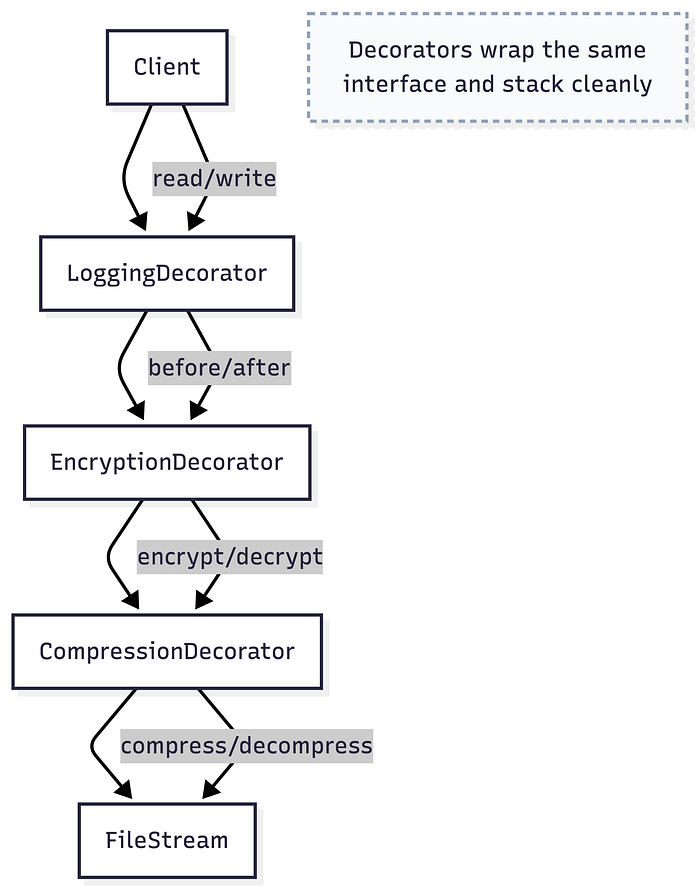

When you need combinations like logging + encryption + compression + caching, subclassing becomes a combinatorial mess. Decorator gives you composition that stays local and explicit.

Decorator works best when each wrapper is small and predictable. If wrappers start depending on each other, it becomes difficult to reason about call order and side effects.

Step 4: Do you need a stand-in object?

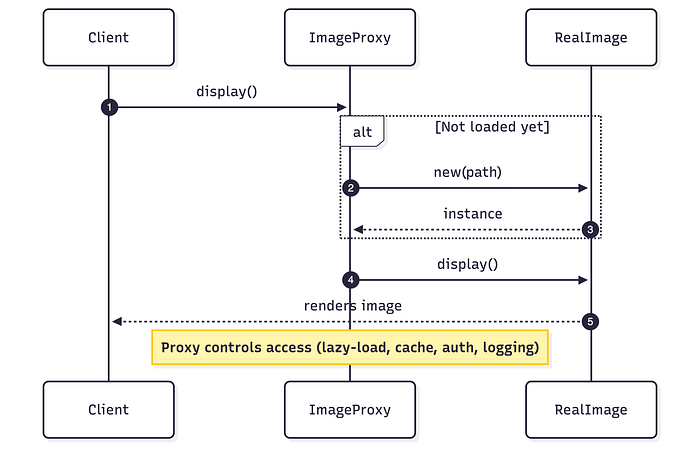

Use Proxy when you want lazy loading, caching, access control, instrumentation, or remote calls behind a local-looking interface.

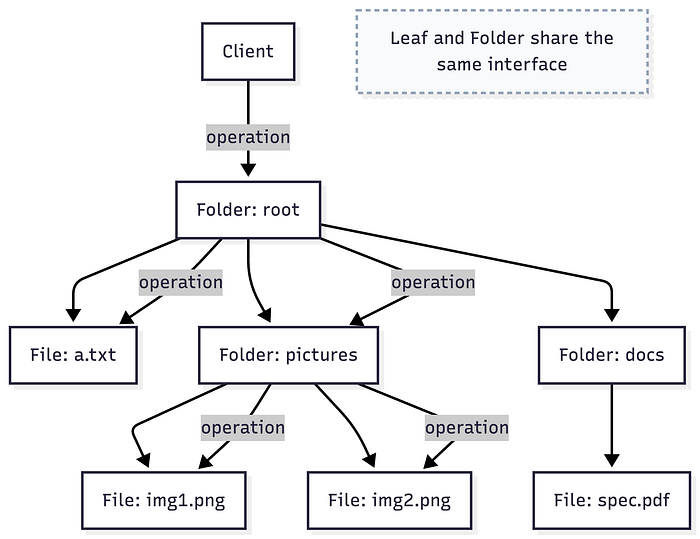

Step 5: Do you have a tree and want uniform treatment?

Use Composite when your domain naturally forms a hierarchy and you want to treat leaf nodes and containers the same way (file systems are the classic example; UI components and nested content structures are also common).

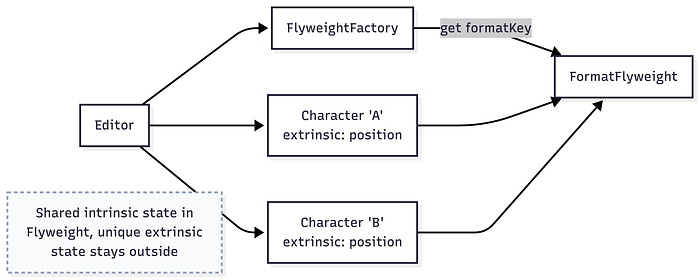

Step 6: Are you paying a memory cost for repeated shared state?

Flyweight matters when many objects share identical data and duplicating it is expensive. It is less common in typical web app code, but it is worth keeping in mind for editors, renderers, or large in-memory models.

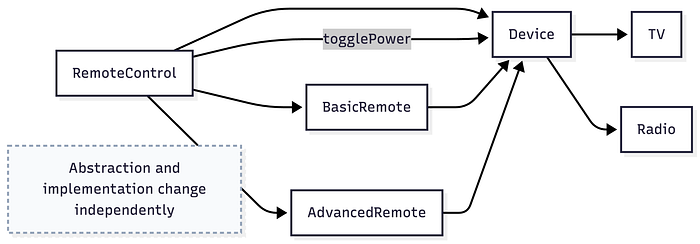

Step 7: Do you want to vary abstraction and implementation independently?

Use Bridge when you have two dimensions of change and want to avoid a matrix of subclasses (for example: "export format" vs "export destination", or "device type" vs "control type").

Branch 3: Handling behaviour (Behavioural patterns)

Use this branch when the main issue is changing rules and workflow logic: a method accumulating if branches, an algorithm changing per customer or plan, or a pipeline that is hard to extend cleanly.

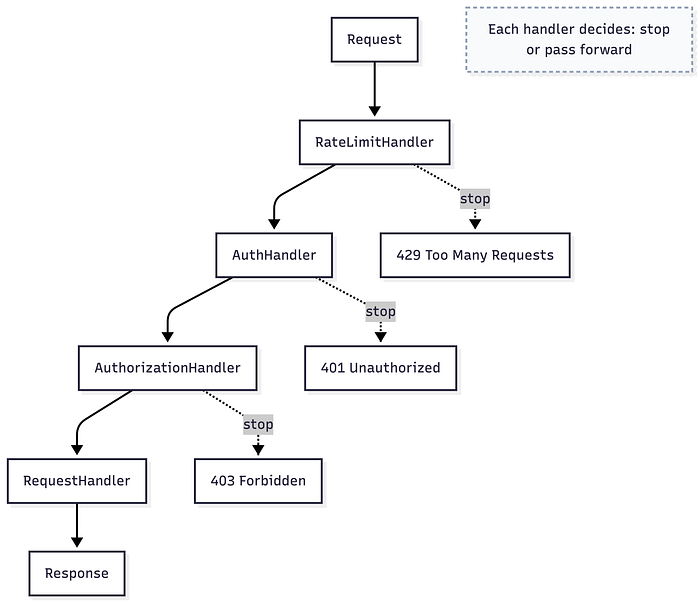

Step 1: Do requests flow through a sequence of independent steps?

Chain of Responsibility fits middleware-style pipelines where each step may stop processing or pass the request along.

class Handler
  def initialize(next_handler = nil)
    @next = next_handler
  end

  def call(request)
    return unless handle?(request)
    @next&.call(request)
  end
end

The pattern stays healthy when each handler has a single responsibility and a clear "stop vs continue" contract. It breaks down when handlers mutate shared state unpredictably or depend on each other's internal behaviour.

Step 2: Do you need to queue actions, log them, retry them, or undo them?

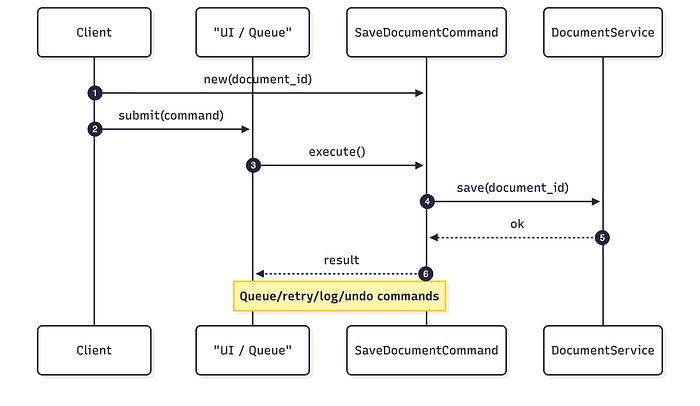

Use Command when representing actions as objects gives you operational benefits: job queues, retries, audit logs, "run later" workflows, or undo stacks.

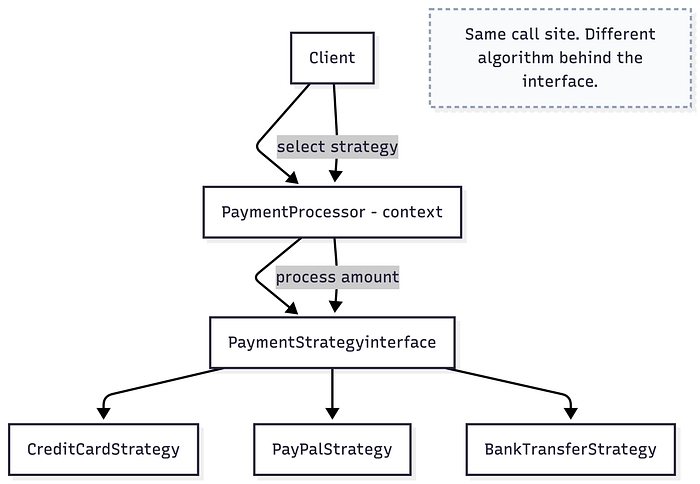

Step 3: Do you need to swap algorithms without changing the caller?

Strategy is the high-ROI answer when you have multiple implementations of the same behaviour and you want the caller to stay stable. This is common for payment providers, routing decisions, recommendation policies, rate limiting algorithms, and formatting logic.

The practical signal is recurring branching: "if plan is X do this, if plan is Y do that," plus tests that duplicate setup across branches.

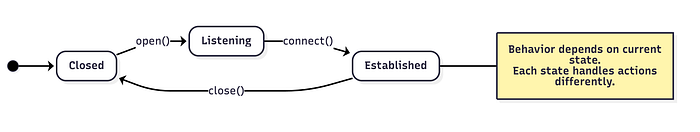

Step 4: Is behaviour driven by state and conditionals keep multiplying?

Use State when you have well-defined modes and transitions (connections, approval workflows, session lifecycles). State reduces complex branching by making behaviour explicit per state.

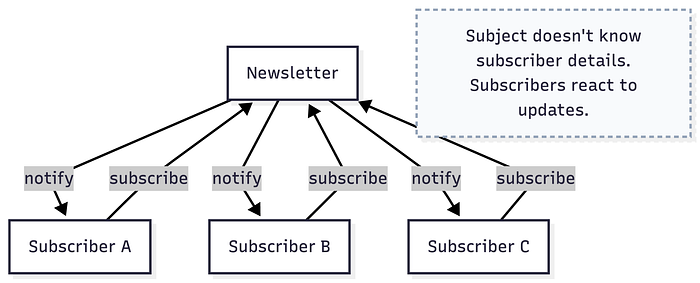

Step 5: Do you need one-to-many notifications?

Use Observer for subscription-style updates. It can be clean, especially with domain events, but it can also hide control flow. Keep observers visible and avoid introducing surprising side effects.

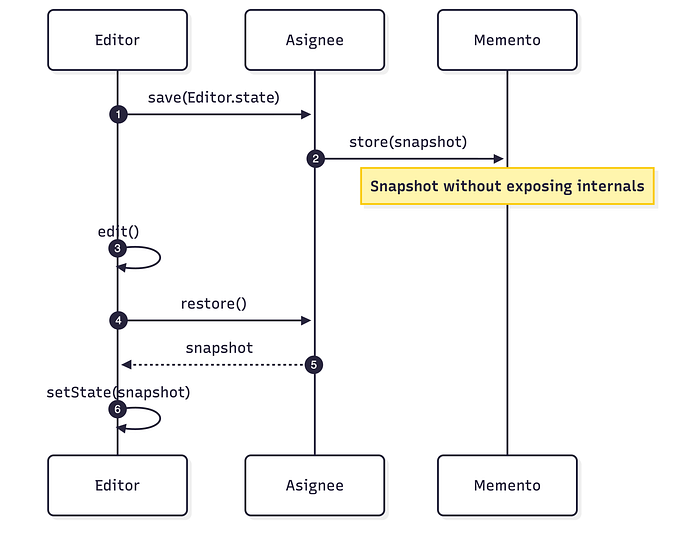

Step 6: Do you need snapshots and restores?

Memento fits undo features, rollbacks, and restoring prior versions without exposing internal representation.

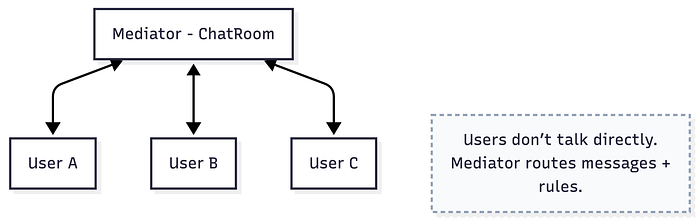

Step 7: Do you need a coordinator so objects don't depend on each other directly?

Mediator can reduce coupling in complex coordination scenarios, especially in UI logic or workflow orchestration. The risk is concentrating too much logic into one place. Mediators stay manageable when their responsibilities are narrow and well-defined.

Step 8: Do you need new operations over a stable object structure?

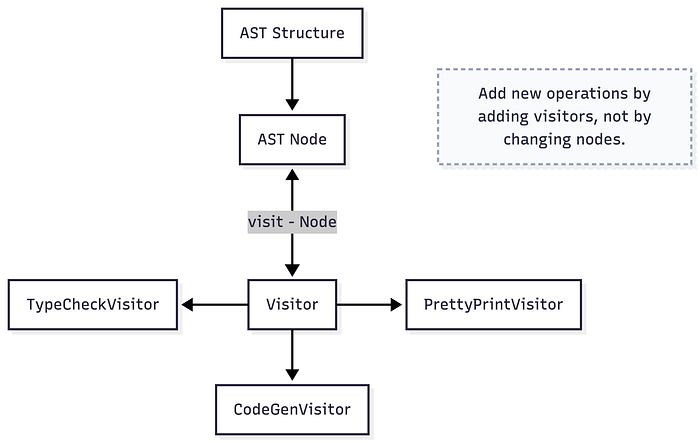

Visitor is most useful when the structure is stable (like an AST — Abstract Syntax Tree) and you need to add new operations without changing the structure. In application code, it's less common than Strategy or Chain, but still valuable in the right domain.

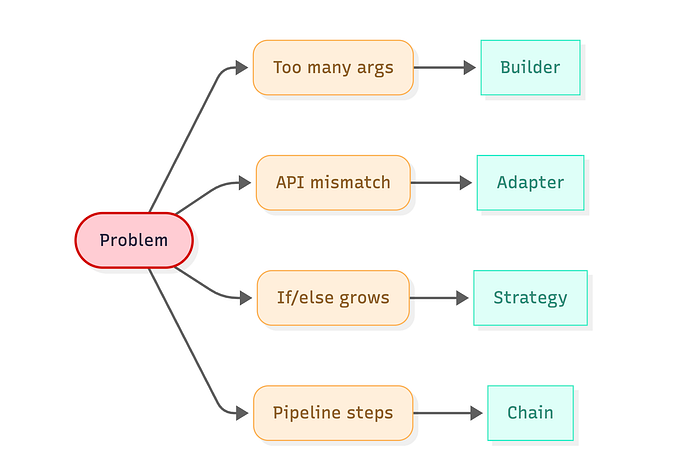

The Complete Decision Tree

Applying the tree to common situations

1) Notification delivery (email, SMS, push)

When delivery rules grow and channels expand, branching becomes the default implementation strategy. Strategy is a better fit because you can add a new channel without rewriting the caller.

A practical implementation is an interface such as NotificationChannel#send(user, message) with concrete implementations per channel, and a selector that chooses the strategy based on configuration or feature flags.

2) API request processing (rate limiting → auth → handler)

When a request must pass through multiple checks in a defined order, Chain of Responsibility keeps each step small and testable. It also makes reordering or inserting steps safer, because the contract is explicit.

3) Report generation (many options, multiple formats)

Builder helps when report configuration has many parameters and valid combinations matter. Strategy helps when you want to choose PDF/CSV/XLSX generation without burying formatting logic inside conditionals.
