In this article, we'll explore the low-level design of a scalable notification system, incorporating orchestration, retry mechanisms, and rate limiting to ensure timely and successful delivery. We'll dive into interfaces, abstract classes, and concrete service implementations to create a robust notification infrastructure, using design patterns that ensure flexibility and scalability.

1. Functional Requirements

• Notification Types: Email, SMS, Push Notifications, In-App notifications, etc.
• Channel Selection: Dynamically select the appropriate channel based on user preferences or failover scenarios.
• Batching: Support sending notifications in bulk.
• Scheduling: Send notifications at specified times.
• Rate Limiting: Control the number of notifications sent within a time window.
• Priority Handling: Ensure higher-priority notifications are sent faster.
• Retry and Failover Mechanism: Retries for failed notifications and channel switching for backup.
• User Preferences: Allow users to customize notification channels, types, and timeframes.
• Logging and Auditing: Log all notification-related activities for traceability.
• Scalability: Handle millions of notifications with minimal latency and high availability.

2. Components

• Notification Service : Exposes endpoints for sending notifications.
• Orchestrator: Manages the entire notification workflow, including batching, retries, and channel switching.
• Notification Dispatcher: Responsible for actually sending notifications via different channels (email, SMS, push, etc.).
• User Preferences Service: Stores and retrieves user notification preferences.
• Retry Mechanism: Handles failed notifications and retries using exponential backoff.
• Rate Limiter: Limits the number of notifications sent based on priority or channel.
• Notification Queue: Message queues (e.g., RabbitMQ, Kafka) to decouple and scale the dispatching process.
• Scheduler: For time-based notifications.
• Channel Services: Interfaces and concrete implementations for different notification channels (Email, SMS, Push, etc.).

3. Entities

• Notification: Represents a notification request with details like type (email, SMS), content, recipient, priority, etc.
• Channel: Different modes of communication like Email, SMS, Push.
• User: Stores user-specific information like ID, preferences, and contact details.
• NotificationTemplate: Predefined templates for various types of notifications.

class Notification {
    String id;
    String userId;
    NotificationType type;
    String content;
    Priority priority;
    Status status;
}

class Channel {
    String id;
    String name;  // Email, SMS, Push, etc.
    List<String> supportedRegions;
}

class User {
    String id;
    String name;
    Map<NotificationType, List<Channel>> preferences;  // Channel preferences per notification type
}

class NotificationTemplate {
    String id;
    String templateType;  // Success, Failure, Warning, etc.
    String content;  // Predefined message format
}

4. Low Level Design diagram

5. Interfaces/Abstract classes

Notification Service: Defines methods to send, schedule, retry, and handle bulk notifications.

interface NotificationService {
    void sendNotification(Notification notification);
    void scheduleNotification(Notification notification, DateTime scheduleTime);
    void retryNotification(Notification notification);
    void sendBulkNotifications(List<Notification> notifications); // Bulk notifications
}

Channel Service: Specifies methods to send notifications via specific channels (email, SMS, push) and log attempts/results.

interface ChannelService {
    boolean sendNotification(Notification notification);
    void logSendingAttempt(Notification notification);
    void logSendingResult(Notification notification, boolean success);
}

Orchestrator: Coordinates the overall notification workflow, ensuring notifications are sent or retried.

interface Orchestrator {
    void orchestrateNotification(Notification notification);
    void orchestrateBulkNotifications(List<Notification> notifications);
}

RateLimiter: Checks if the system is allowed to send notifications based on rate-limiting rules.

interface RateLimiter {
    boolean isAllowedToSend(Notification notification);
}

Retry Service: Manages retries for failed notifications with options for backoff.

interface RetryService {
    void retry(Notification notification);
    void retryWithBackoff(Notification notification, int retryCount); // Exponential backoff
}

AbstractChannelService: Provides common logic for sending notifications and logging, while delegating the actual send operation to concrete subclasses.

abstract class AbstractChannelService implements ChannelService {
    @Override
    public boolean sendNotification(Notification notification) {
        // Basic channel-specific logic for sending
        logSendingAttempt(notification);
        boolean success = performSend(notification); // Calls concrete send logic
        logSendingResult(notification, success);
        return success;
    }

    protected abstract boolean performSend(Notification notification);

    @Override
    public void logSendingAttempt(Notification notification) {
        // Log the attempt
        System.out.println("Logging attempt for: " + notification.getId());
    }

    @Override
    public void logSendingResult(Notification notification, boolean success) {
        // Log result
        System.out.println("Notification " + notification.getId() + (success ? " sent successfully." : " failed to send."));
    }
}

6. Concrete service implementations

Email Service: Implements the logic to send email notifications.

class EmailService extends AbstractChannelService {
    @Override
    protected boolean performSend(Notification notification) {
        // Email-specific logic
        System.out.println("Sending email to: " + notification.getRecipient());
        return true; // Assume success for simplicity
    }
}

SMS Service: Handles sending notifications via SMS.

class SMSService extends AbstractChannelService {
    @Override
    protected boolean performSend(Notification notification) {
        // SMS-specific logic
        System.out.println("Sending SMS to: " + notification.getRecipient());
        return true; // Assume success for simplicity
    }
}

PushNotification Service: Sends notifications via push channels (e.g., mobile push).

class PushNotificationService extends AbstractChannelService {
    @Override
    protected boolean performSend(Notification notification) {
        // Push notification-specific logic
        System.out.println("Sending push notification to: " + notification.getRecipient());
        return true; // Assume success for simplicity
    }
}

7. Orchestrator and Workflow

Notification Orchestrator: Implements orchestration logic, including calling user preferences, rate limiter, and retry services.

class NotificationOrchestrator implements Orchestrator {
    private final Map<NotificationType, ChannelService> channelServices;
    private final UserPreferenceService userPreferenceService;
    private final RetryService retryService;
    private final RateLimiter rateLimiter;

    public NotificationOrchestrator(Map<NotificationType, ChannelService> channelServices,
                                    UserPreferenceService userPreferenceService,
                                    RetryService retryService, RateLimiter rateLimiter) {
        this.channelServices = channelServices;
        this.userPreferenceService = userPreferenceService;
        this.retryService = retryService;
        this.rateLimiter = rateLimiter;
    }

    @Override
    public void orchestrateNotification(Notification notification) {
        List<Channel> preferredChannels = userPreferenceService.getUserPreferences(notification.getRecipient());

        for (Channel channel : preferredChannels) {
            ChannelService service = channelServices.get(channel);

            if (rateLimiter.isAllowedToSend(notification) && service != null) {
                boolean success = service.sendNotification(notification);

                if (success) {
                    break; // Stop if the notification was successfully sent
                } else {
                    retryService.retry(notification); // Retry if failed
                }
            }
        }
    }

    @Override
    public void orchestrateBulkNotifications(List<Notification> notifications) {
        for (Notification notification : notifications) {
            orchestrateNotification(notification); // Reuse single notification logic
        }
    }
}

User Preference service

class UserPreferenceService {
    public Map<NotificationType, List<Channel>> getUserPreferences(String userId) {
        // Logic to fetch user preferences from database or cache
        return new HashMap<>(); // For simplicity, return empty map
    }
}

Retry Service: Retrieves user preferences for notification delivery channels. Implements retry logic with an exponential backoff strategy.

class ExponentialBackoffRetryService implements RetryService {
    @Override
    public void retry(Notification notification) {
        retryWithBackoff(notification, 1); // Initial retry count
    }

    @Override
    public void retryWithBackoff(Notification notification, int retryCount) {
        // Exponential backoff logic
        int backoffTime = (int) Math.pow(2, retryCount);
        System.out.println("Retrying notification " + notification.getId() + " after " + backoffTime + " seconds.");
        // Simulate delay, then retry send
    }
}

Rate limiter: Enforces rate-limiting rules for notifications.

class SimpleRateLimiter implements RateLimiter {
    @Override
    public boolean isAllowedToSend(Notification notification) {
        // Simple rate-limiting logic, e.g., check per-minute quota
        return true; // Assume always allowed for simplicity
    }
}

8. Consolidate and put all together from Main

public class NotificationSystemApplication {
    public static void main(String[] args) {
        // Setup channel services
        Map<NotificationType, ChannelService> channelServices = new HashMap<>();
        channelServices.put(NotificationType.EMAIL, new EmailService());
        channelServices.put(NotificationType.SMS, new SMSService());
        channelServices.put(NotificationType.PUSH, new PushNotificationService());

        // Setup additional services
        UserPreferenceService userPreferenceService = new UserPreferenceService();
        RetryService retryService = new ExponentialBackoffRetryService();
        RateLimiter rateLimiter = new SimpleRateLimiter();

        // Initialize the orchestrator
        NotificationOrchestrator orchestrator = new NotificationOrchestrator(
            channelServices, userPreferenceService, retryService, rateLimiter
        );

        // Sample notification
        Notification notification = new Notification("123", "UserA", NotificationType.EMAIL, "Hello User!");

        // Orchestrate the notification sending process
        orchestrator.orchestrateNotification(notification);

        // Example bulk notification
        List<Notification> bulkNotifications = Arrays.asList(notification, new Notification("124", "UserB", NotificationType.SMS, "Welcome!"));
        orchestrator.orchestrateBulkNotifications(bulkNotifications);
    }
}

9. Workflow diagram

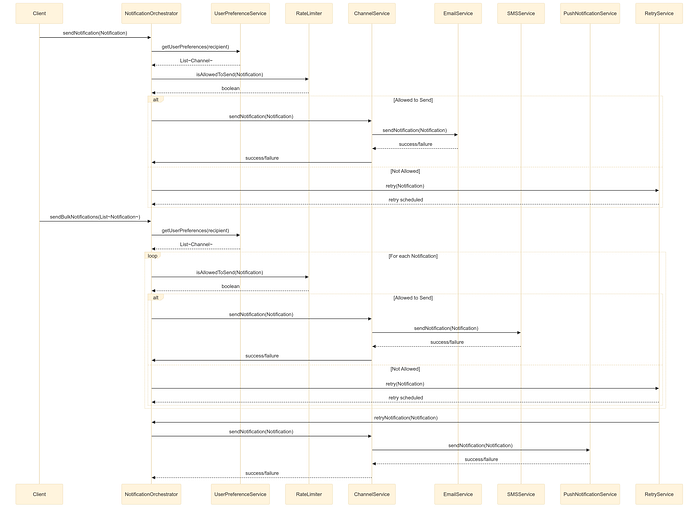

Following is the detailed sequence diagram capturing sending single notification, bulk notifications, retrying failed notifications.

Summary:

The above proposed Notification System is designed to handle large-scale, enterprise-level notification delivery across multiple channels such as email, SMS, and push notifications. The system is modular, with distinct responsibilities allocated to each component through interfaces, abstract classes, and concrete implementations. The core of the design involves a NotificationOrchestrator that coordinates the entire process, including user preferences, rate limiting, and retries for failed notifications. This ensures that notifications are delivered efficiently and reliably.

Key features of the design include:

1. NotificationService Interface to standardize notification operations.
2. ChannelService Interface and AbstractChannelService to support multiple channels while centralizing common behavior.
3. Orchestrator to handle end-to-end workflows, ensuring that notifications are sent or retried when needed.
4. Rate Limiting via a RateLimiter service to control notification traffic.
5. Retry Mechanism through a RetryService to handle failures with strategies like exponential backoff.

Conclusion:

This low-level design of a scalable notification system is optimized for enterprise use, ensuring flexibility, reliability, and performance. The use of interfaces, abstract classes, and service-oriented implementations follows solid OOP principles, making the system easy to extend and maintain. By incorporating orchestration, rate limiting, and retry mechanisms, the design guarantees high throughput and fault tolerance, capable of delivering notifications at scale while handling failures gracefully. This makes the system well-suited for any high-demand environment where timely notifications are critical for user engagement.
